| Place of Origin: | China |
| Brand Name: | HBYIQI |
| Certification: | CE, ISO |
| Model Number: | HB-VMS-2010F |

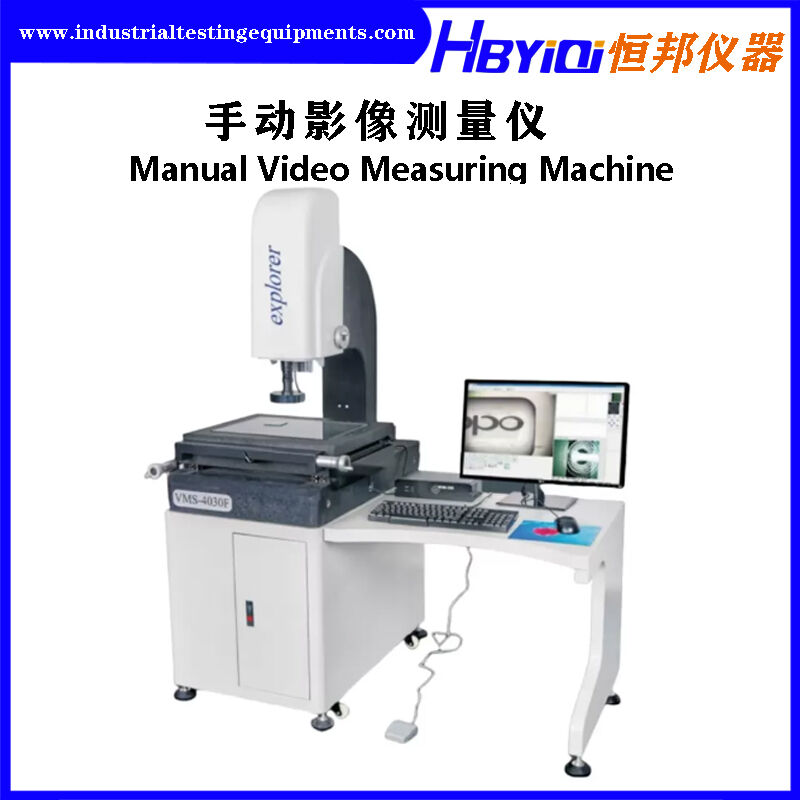

Dimensional Measuring Instrument Manual Image Measuring Instrument Video Measuring System VMS
Brand: HBYIQI
VMS Description:
A high configuration measuring equipment with the most competitive price, based on two-dimensional coordinate measurement, it can measure points, lines, circles, arcs, rectangles and other geometric elements and parts of the length, angle, contour shape, surface shape, etc. Also, it also can be three-dimensional auxiliary measurement, such as measuring the height of the steps, hole depth, surface flatness, and so on. This manual image measuring instrument are widely used in machinery, electronics, instrument, plastics, hardware and other industries.
Techinical Parameter:
|
Model |
HB-VMS-2010F | HB-VMS-3020F | HB-VMS-4030F | HB-VMS-5040F | |
| Work Table | X/Y axis travel(mm) | 200*100 | 300*200 | 400*300 | 500*400 |
| Z axis travel(mm) | Effective space is 245mm,focusing stroke is 200mm,and working distance is 95mm. | ||||
| Mental table dimension(mm) | 350*220 | 450*350 | 550*450 | 700*600 | |
| Glass table dimension(mm) | 230*130 | 330*230 | 430*330 | 530*430 | |
| Drive type | XN axis rod drive, Z axi optical axi drive | ||||
| Measuring Servo Drive System | Optical scale resolution:X/Y axis 0.0005mm(0.5um) | ||||
| Measuring accuracy:≤3um+L/200; Repeatability accuracy:≤3um+L/200 | |||||
| Versatile data processor can measures points,lines,loops,circles,angles,etc | |||||
| Image system | Camera:Japanese Sony CCD; Video magnitication: 30-230X | ||||
| Len:high definition zoom lens/Continuous magnification 0.7-4.5x Options---0.5xobjecive lens,total magnification:15-115x Options---2xobjective lens,total magnification:60-460x |
|||||
| Light system | Surface light and projection light,cold light,long life,brightness adjustable | ||||
| Machine external dimension(mm) | 500*700*1100 | 600*750*1100 | 700*900*1150 | 850*1050*1200 | |
| Machine weight(kg) | 170 | 260 | 300 | 500 | |
| Accessory Options |
Contact measuring probe (height measurement, flatness measurement required); Coaxial light (required for deep hole products); Z-axis reading |
||||
Be the best measurinjg software for you!
Automatic measuring software is a professional two-dimensional measuring software developed by the engineers with more than ten years of experience in measurement industry and software.The design principle is operate simply, powerful, stable and reliable, maintenance easily. The software is mainly draw lessons from well-known foreign software, such as the United States OGP MeasureMindPlus multi sensor measuring software, and the MicroVu company’s software in the United States; And it combines with the domestic situation and learns widely from other advantages, carefully optimized combination, elaborately research and development. Here is the system picture:
The Typical Probe Application:
