| Place of Origin: | China |
| Brand Name: | HBYIQI |
| Certification: | IEO9001 |
| Model Number: | HB-QUV-A |

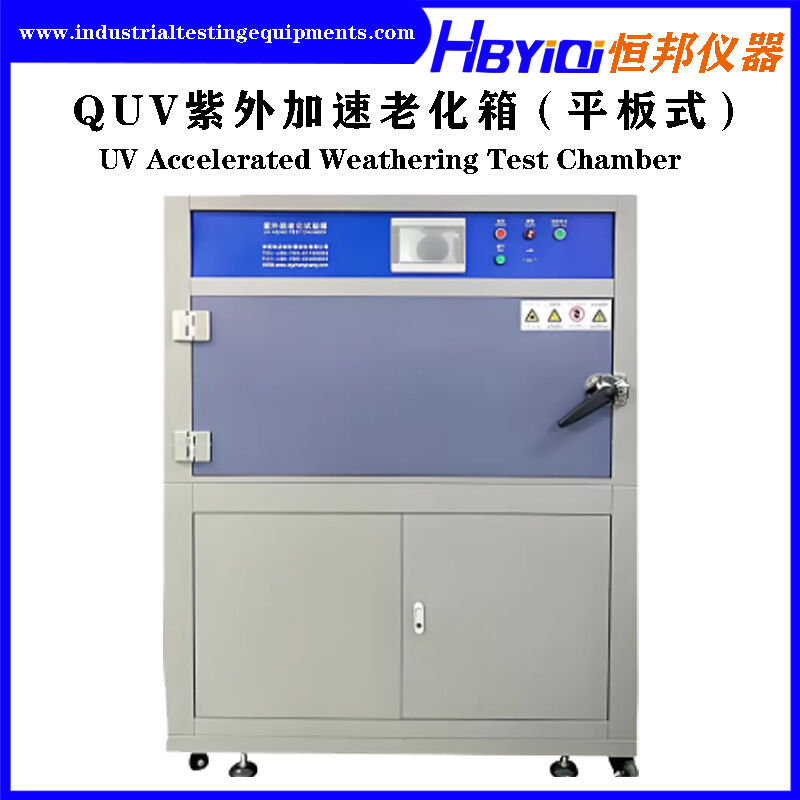

UV Aging Test Chamber QUV Ultraviolet Accelerated Aging Test Machine
Brand: HBYIQI
Equipment Name: QUV Ultraviolet Accelerated Aging Chamber (Flat Plate Type)
Compliance with Relevant Standard Test Requirements or Equivalent Requirements:
Complies with the following tests in standards of GB, GJB, ISO, IEC, ANSI, ASME, ASTM, JIS, BS, DIN, NF, UNI, TNAI, AS, BDSI, CAS, CA, COSQC, S., CSA, CSK, CSN, DGN, DGNT, DS, ELOT, E.S., ESI, GS, ICONTEC, INAPI, INEN, IOS, IRAM, IR, ISIRI, ITINTEC, IS, JS.S, JUS, and standards of various countries:
Simulate sunlight UV ultraviolet rays, rain, condesation, aging tests.
Equipment Purpose:
Sunlight and moisture cause tens of millions of dollars of material damage every year. The types of hazards to products include: fading, discoloration, loss of gloss, chalking, cracking, turbidity, blistering, embrittlement, strength decline, and oxidation. The QUV ultraviolet accelerated aging test machine can conduct alternating ultraviolet light and moisture cycle aging tests on materials, reproducing the damage caused by sunlight, rain, and dew. In just a few days or weeks, the QUV ultraviolet tester can replicate the damage that occurs outdoors over months or years. It is an indispensable test equipment for research and development, production, and quality control.
Technical Parameters:
| Model | HB-QUV-A |
| Inner Chamber Dimensions (cm) | W114×D50×H40 |
| Outer Chamber Dimensions (cm) | W130×D70×H140 |
| Lamp Selection |
The luminous spectral energy of UVA-340 lamps is mainly concentrated at a wavelength of 340nm; The luminous spectrum of UVB-313 lamps is mainly concentrated at a wavelength of 313nm. |
| Lamp Life (Approximately) | ≤1500 hours |
| Number of Lamps | 8 special ultraviolet lamps, 40W/pcs |
| Radiation Intensity | 0.4 - 1.2W/m²/340nm |
| Temperature Resolution | 0.1°C |
| Illumination Temperature Range | 50°C - 70°C / Temperature Tolerance: ±3°C |
| Condensation Temperature Range | 40°C - 60°C / Temperature Tolerance: ±3°C |
| Blackboard Thermometer Measurement Range | 30 - 80°C / Tolerance: ±1°C |
| Humidity Range | Approx 45% - 70%R.H (illumination state, non - adjustable) / Above 98% (condensation state, non - adjustable) |
| Water Tank | Water depth not greater than 25mm, with an automatic water supply controller |
| Standard Specimen Size | ≤1000×400mm |
| Test Modes | Ultraviolet light, rain, condensation, darkness (can be set with fixed values or programmed for cycles) |
| Test Time | 0 - 9999H (can be set) |
| Cycle Period | 1 - 999 times (can be set) |
| Control System | QUV Program Control System |
| Language | Supports Chinese and English |
| Heating System | Uses nickel - chromium alloy electric heating wires |
| Protection Devices | Leakage protection, short - circuit protection, over - temperature protection, water shortage protection, and fault alarm system |
| Shelves | 1 piece as standard (more can be selected as options) |
| Voltage (V) | AC 220V |
| Power (KW) | According to the design |
| Weight (kg) | To be confirmed before shipment |
Equipment Detail
Test Main Interface
Test Step Setting Interface
Real - time Curve Interface
Rain Spray
UV Illumination Diagram
For more information, please contact HBYIQI.
