Temperature Humidity Vibration Test Chamber

Custom Temperature Humidity Vibration Test Chamber 2252L GB GJB ISO IEC Standard

Name: Custom Temperature Humidity Vibration Test Chamber 2252L GB GJB ISO IEC Standard
Brand: Guangdong Hengbang Testing Equipment Co.,Ltd.
SKU: HB-VID-2252L (A\B\C)
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	HBYIQI
Certification:	ISO9001
Model Number:	HB-VID-2252L (A\B\C)

Detail Information

Place of Origin:

China

Brand Name:

HBYIQI

Certification:

ISO9001

Model Number:

HB-VID-2252L (A\B\C)

Volume:

2252L

Temperature Range:

-70 To +150°C

Humidity Range:

20% - 98%RH

Vibration Range:

3-3000Hz

Heating/Cooling Rate:

Approx. 3°C/min-15°C/min

Protection:

Multi-protection Mode

Highlight:

High Light

Highlight:

Custom Temperature Humidity Vibration Test Chamber

Temperature Humidity Vibration Test Chamber 2252L

Trading Information

Minimum Order Quantity:

1SET

Price:

Negotiated

Packaging Details:

International Standard

Delivery Time:

15days

Payment Terms:

T/T

Product Description

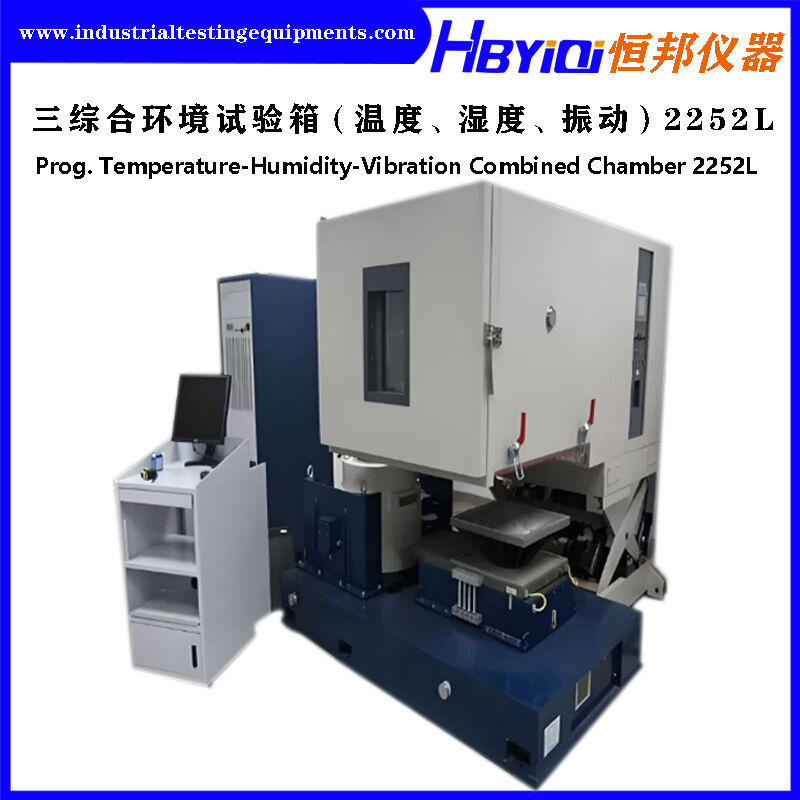

Temperature Humidity Vibration Combined Test Chamber 2252L for Electronic Material Automotive Parts

Brand: HBYIQI

Equipment Name: Three-in-One Environmental Test Chamber (Temperature, Humidity, Vibration)

Compliance with Relevant Standard Test Requirements or Equivalent Requirements:
Complies with the following tests in national standards such as GB, GJB, ISO, IEC, ANSI, ASME, ASTM, JIS, BS, DIN, NF, UNI, TNAI, AS, BDSI, CAS, CA, COSQC, S., CSA, CSK, CSN, DGN, DGNT, DS, ELOT, E.S., ESI, GS, ICONTEC, INAPI, INEN, IOS, IRAM, IR, ISIRI, ITINTEC, IS, JS.S, JUS:

High-temperature Test
Low-temperature Test
High-low Temperature Cycling Test
Cold Test
Dry Heat Test
Wet Heat Test
Alternating Damp Heat Test
Vibration Test

Equipment Purpose:
The (Temperature-Humidity-Vibration) three-in-one test chamber is applicable for conducting high-low temperature, alternating damp heat tests on products (complete machines), components, and materials. When connected to a vibration table, it can realize multi-combined environmental stress screening tests of temperature, humidity, and vibration.

Technical Parameters:

Model		HB-VID-2252L (A/B/C)
Workshop Volume (L/m²)	Workshop Volume (L/m²)	2252L
Performance	Temperature Range	A: -20 - +150°C (+180°C)
		B: -40 - +150°C (+180°C)
		C: -70 - +150°C (+180°C)
	Temperature Uniformity	2.0°C
	Temperature Fluctuation	±0.5°C
	Temperature Deviation	±2.0°C
	Humidity Range	20% - 98%RH
	Humidity Uniformity	±3.0%RH (no load)
	Humidity Fluctuation	±2.0%RH
	Humidity Deviation	±3.0%RH (>75%RH), ±5.0%RH (≤75%RH)
	Heating and Cooling Rate (Full Course Average)	Approx. 3°C/min - 15°C/min (no load)
Inner Box Dimensions (mm)	Width W	1500
	Height H	1000
	Depth D	1500
Outer Box Dimensions (mm)	Width W	1200
	Height H	1860
	Depth D	1725
Vibration Table Device	Length L	1100
	Width W	1100
	Diameter φ	1200
Frequency Range		3- 3000Hz
Maximum Acceleration		1200m/s²
Maximum Displacement		50mmp-P / 76mmp-P / 100mmp-P
Cooling Method		Air cooling or water cooling
Outer Box Material		High-quality cold-rolled steel plate with electrostatic powder baking finish on the surface
Inner Box Material		SUS304 stainless steel plate, with the inner tank integrally fully welded
Insulation Layer		Rigid polyurethane foam insulation layer, thickness = 100mm, flame retardant grade B2
Observation Window		Multi-layer vacuum glass window with an electronic anti-fog film for heating and anti-sweating, preventing condensation
Noise		≤65dB
Refrigerant		Environment-friendly refrigerant R404A/R23
Control Method		Balanced Temperature Control System (BTHC) + PID
Control System		7-inch color touch screen controller in Chinese and English
Control Panel		Temperature (Humidity) control touch display screen, start switch, buzzer
Chamber Standard Configuration		1. Lead wire hole (silicone plug), 2. Sample holder
Network Connection		Can be connected to the Ethernet through professional software. Remote control and remote assistance can be carried out via the network. Test data can also be collected through the network, and multiple machines can be controlled simultaneously.
Operating Environment		1. Ambient temperature: 5°C - 35°C. 2. Atmospheric pressure: 80kPa - 106kPa. 3. Flat and vibration-free ground. 4. Well-ventilated area, without direct sunlight or direct radiation from other heat sources.
Power Supply		380V AC (±10%) 50Hz±0.5, three-phase four-wire
Protection Devices		Heater dry-burning prevention protection switch Heater overcurrent circuit breaker Circulating fan overcurrent overload protection Compressor high-pressure protection switch Compressor overheat protection switch Overvoltage, under-voltage, and reverse-phase protection switch Line circuit breaker Leakage switch Zero-crossing thyristor power controller water shortage protection

Equipment Detail

Main Interface

Custom Temperature Humidity Vibration Test Chamber 2252L GB GJB ISO IEC Standard 0

Setting Test

Custom Temperature Humidity Vibration Test Chamber 2252L GB GJB ISO IEC Standard 1

Program Test

Custom Temperature Humidity Vibration Test Chamber 2252L GB GJB ISO IEC Standard 2

Custom Temperature Humidity Vibration Test Chamber 2252L GB GJB ISO IEC Standard 3

Custom Temperature Humidity Vibration Test Chamber 2252L GB GJB ISO IEC Standard 4
