Equipment Name: Simulated Transportation Vibration Table (Touch-screen Type)
Brand: HBYIQI
Equipment Purpose
This equipment is designed to simulate the damage inflicted on products by the jolts during automotive transportation. It is used to evaluate the ability of products to endure environmental vibrations and to assess the effectiveness of packaging in protecting products. The machine operates with rotary vibration, referring to transportation specifications of various countries and meeting test standards such as GB, EN71, ANSI, UL, ASTM, and ISTA.
Test Objectives
To test the strength of the product structure.
To check for the loosening of bonded components.
To examine the wear of protective materials.
To detect the breakage of components.
To identify poor contact in electronic components.
To find out short - circuits and intermittent instability in circuits.
To measure the deviation of standard values of each component.
To screen out defective products in advance using the simulated transportation vibration table.
To explore the resonance relationship among parts, structures, packaging, and the transportation process, and optimize the resonance factors.
Technical Parameters
Model | HB-E01-B | Customizable Model |
Frequency Modulation Range | 1-5Hz | Customized (negotiated between both parties) |
Product Load | 50Kg | |
Frequency Accuracy | 0.11 Hz | |
Control Method | PLC Touch - screen Control | |
Fixed Amplitude (mm) | 1in (25.4mm) (non - adjustable) | |
Vibration Excitation Method | Rotary | |
Vibration Waveform | Sinusoidal Wave | |
Test Mode | Multi - step Fixed - frequency Vibration | |
Timing Range | 0 - 9999H/M/S, arbitrarily set | |
Tabletop Size (mm) | W1000*D1200 | |
Overall Machine Size (mm) | W1000*D1200*H1000 | |
Power Supply Voltage (V/Hz) | 220/50±5% | |
Power Consumption (KW) | 1.5 | |
Optional Accessories | Customized Fixture | |
Standard Configuration | ||
Tools | A set of random tools | |
Documentation | Operating Instructions for the Testing Machine, Factory - issued Calibration Certificate of Conformity, Warranty Certificate | |

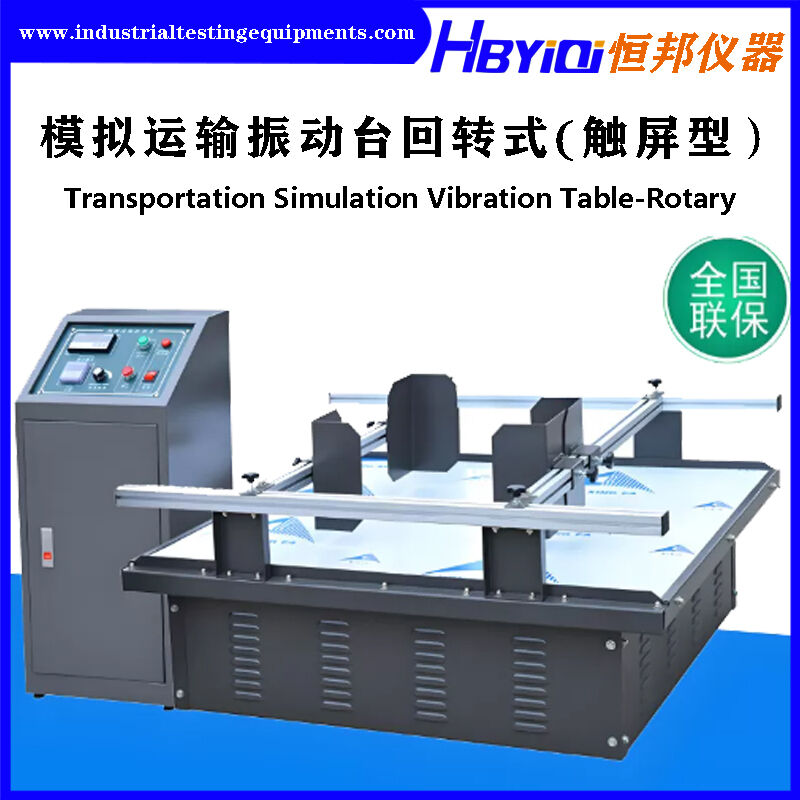

Machine Detail Display:
For more inquiries, please contact the salesperson.
