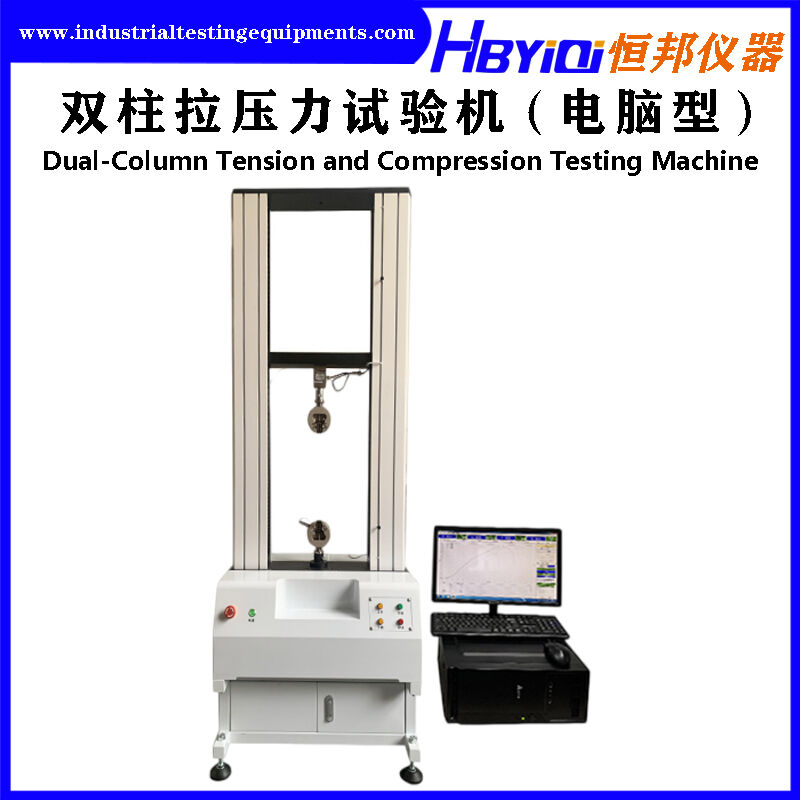

2-50KN Universal Material Testing Machine Double Column For Non Metallic Materials
2-50KN Universal Material Testing Machine Double Column For Non Metallic Materials
  • 2-50KN Universal Material Testing Machine Double Column For Non Metallic Materials
  • 2-50KN Universal Material Testing Machine Double Column For Non Metallic Materials
  • 2-50KN Universal Material Testing Machine Double Column For Non Metallic Materials

2-50KN Universal Material Testing Machine Double Column For Non Metallic Materials

Product Details:
Place of Origin: China
Brand Name: HBYIQI
Certification: ISO9001
Model Number: HB-B03-S
Detail Information
Place of Origin:
China
Brand Name:
HBYIQI
Certification:
ISO9001
Model Number:
HB-B03-S
Control Method:
Computer Control
Maximum Test Force:
2KN, 5KN, 10KN, 20KN,50KN (optional)
Test Force Measurement Range:
2%-100%
Accuracy Level:
≤±0.5
Effective Tensile Stroke:
800mm
Available Fixtures:
Tension, Compression, Bending, Shearing, Peeling, Tearing, Etc.
Overall Size:
W735×D635×H1650mm
Weight:
About 145
Power:
1KW
Test Force Resolution:
1/300000 Of Maximum Test Force
Highlight:

High Light

Highlight:

Universal Material Test Machine Double Column

,

50KN Non Metallic Materials Test Machine

,

50KN Universal Material Testing Machine

Trading Information
Minimum Order Quantity:
1SET
Price:
Negotiation
Packaging Details:
International Standard Package
Delivery Time:
15Days
Payment Terms:
T/T
Product Description

Universal Material Testing Machine Double-Column UTM Small Size Computer Control 800mm



Brand: HBYIQI



Appliance: This equipment is suitable for testing various mechanical properties of non-metallic materials or products, such as tension, compression, bending, shearing, tearing, breaking, peeling, pressure resistance, and puncture.



Techinical Parameter:

Model HB-B03-S
Control mode PC end (computer control)
Maximum test force (N) 2KN, 5KN, 10KN, 20KN,50KN (optional)
Accuracy class ≤ ± 0.5 class
Measuring range of test force 2%-100%
Relative error of test force indication ＜±1%
Test force resolution 1/300000 of maximum test force
Deformation measurement range 2%-100%
Relative error of deformation indication ＜±1%
Relative error of displacement indication ＜±1%
Displacement resolution (mm) 0.001
Speed range 0.1mm/min ~ 500mm/min
Effective stretching stroke (mm) About 800mm
Effective stroke of compression (mm) About 800mm
Fixture available Tension, compression, bending, shearing, peeling, tearing, etc.
Overall dimension of main machine (mm)

W735×D635×H1650mm
Motor power (kW) 1kW
Total weight (kg) About 145
Power supply AC220V,50HZ,1A
Standard configuration
Instrument host 1 set
PC (Chinese and English test software) 1 copy
Test fixture 1 pair
Power cord 1 (220V 10 A)
Instructions for use 1 book
Certificate of conformity 1 copy
Computer Optional



Performance Features

  • Computer display with real-time visualization of force value, peak value, speed, test times, and curves.
  • Humanized design for easy operation.
  • Selectable force units: N, kN, kgf, gf, lbf.
  • Selectable displacement units: mm, cm, in.
  • Selectable strength units: Pa, kPa, MPa, kgf/cm², lbf/in².
  • Protection measures: Multiple protection methods including over-force protection and external limit protection.
  • High sensitivity with instant judgment of attenuation and automatic shutdown.

Product Software Advantages

  • Intuitive display in full Chinese or English, suitable for both domestic and international use!
  • Built-in library of multiple physical and mechanical test results.
  • Arbitrary input and setting of test, upward, downward, and return speeds for precise control.
  • Automatic and rapid return after test completion to avoid long waiting time and improve test efficiency.
  • Test results: Automatically recorded, calculated, and saved after test completion, no manual storage required.
  • Multiple test items and selectable units to meet various test standards.
  • High accuracy: Adopts high-precision S-type sensor with a maximum accuracy of 0.25%.
  • Built-in dedicated calibration mode for easy calibration and certification by third-party metrology institutions.

Equipment Details Display

Main Interface of Control System (Comprehensive Content)

2-50KN Universal Material Testing Machine Double Column For Non Metallic Materials 0



Multiple Test Programs (Flexible Editing)

2-50KN Universal Material Testing Machine Double Column For Non Metallic Materials 1



Automatic Recording of Test Analysis Curves

2-50KN Universal Material Testing Machine Double Column For Non Metallic Materials 2



Test Results (Automatic Calculation)

2-50KN Universal Material Testing Machine Double Column For Non Metallic Materials 3



Built-in Library of Hundreds of Test Item Results (Arbitrary Call)

2-50KN Universal Material Testing Machine Double Column For Non Metallic Materials 4



Exportable Test Reports

2-50KN Universal Material Testing Machine Double Column For Non Metallic Materials 5



Built-in Calibration Mode (Convenient and Fast)

2-50KN Universal Material Testing Machine Double Column For Non Metallic Materials 6





Suitable for Various Material Mechanical Tests (Hundreds of Test Fixtures Available for Selection)

2-50KN Universal Material Testing Machine Double Column For Non Metallic Materials 7



2-50KN Universal Material Testing Machine Double Column For Non Metallic Materials 8



2-50KN Universal Material Testing Machine Double Column For Non Metallic Materials 9



2-50KN Universal Material Testing Machine Double Column For Non Metallic Materials 10



2-50KN Universal Material Testing Machine Double Column For Non Metallic Materials 11



2-50KN Universal Material Testing Machine Double Column For Non Metallic Materials 12

2-50KN Universal Material Testing Machine Double Column For Non Metallic Materials 13



2-50KN Universal Material Testing Machine Double Column For Non Metallic Materials 14
