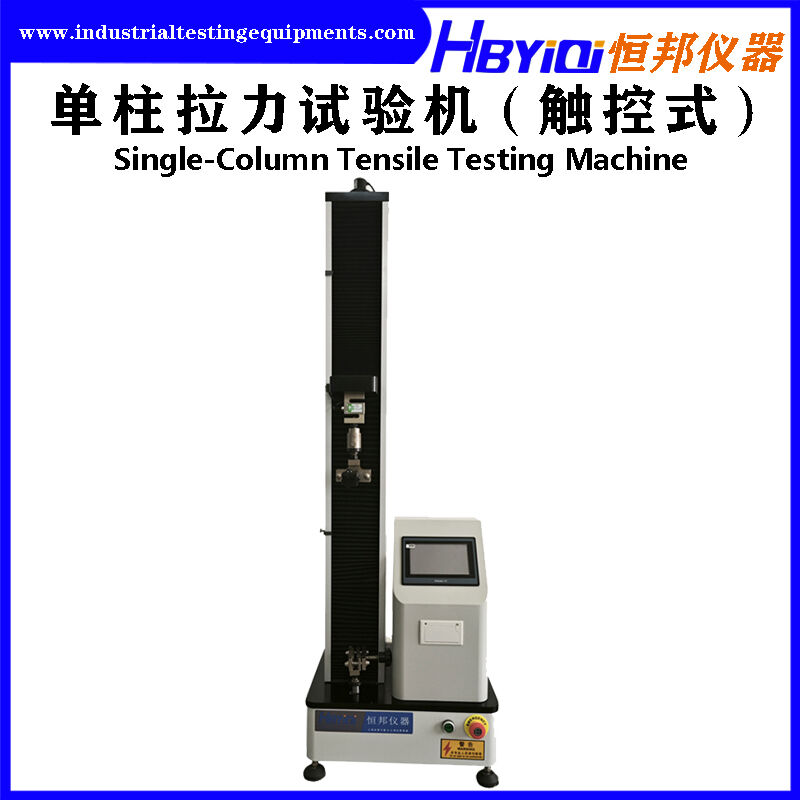

PLC Control 800mm Universal Material Testing Machine Single Column 10N-5KN

Name: PLC Control 800mm Universal Material Testing Machine Single Column 10N-5KN
Brand: Guangdong Hengbang Testing Equipment Co.,Ltd.
SKU: HB-B02-L
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	HBYIQI
Certification:	ISO9001
Model Number:	HB-B02-L

Detail Information

Place of Origin:

China

Brand Name:

HBYIQI

Certification:

ISO9001

Model Number:

HB-B02-L

Maximum Test Force:

10,20,50,100,200,500,1000,2000,3000,5000N

Test Force Measurement Range:

2%-100%

Accuracy Level:

≤±0.5

Control Method:

Touch Screen Control

Effective Tensile Stroke:

800mm

Weight:

About 95kg

Machine Size:

W500×D450×H1600mm

Power:

0.2KW

Test Force Resolution:

1/200000 Of Maximum Test Force

Highlight:

High Light

Highlight:

800mm Universal Material Testing Machine

PLC Control Universal Material Testing Machine

Trading Information

Minimum Order Quantity:

1SET

Price:

Negotiation

Packaging Details:

International Standard Package

Delivery Time:

15Days

Payment Terms:

T/T

Product Description

Universal Material Testing Machine Single-Column UTM 10N-5KN PLC 800mm

Brand: HBYIQI

Appliance:

The equipment is suitable for tensile, tension, compression, bending, shearing, tearing, fracture, stripping, compression, puncture and other mechanical properties of materials or processes.

Techinical Parameter:

Model	HB-B02-L
Model	HB-B02-L
Control mode	PLC touch screen control
Maximum test force (N)	10,20,50,100,200,500,1000,2000,3000,5000N
Accuracy class	≤ ± 0.5 class
Measuring range of test force	2%-100%
Relative error of test force indication	＜±1%
Test force resolution	1/200000 of maximum test force
Deformation measurement range	2%-100%
Relative error of deformation indication	＜±1%
Relative error of displacement indication	＜±1%
Displacement resolution (mm)	0.001
Speed range	0.01mm/min ~ 500mm/min
Effective stretching stroke (mm)	Approx. 800mm (more travel can be customized)
Effective stroke of compression (mm)	Approx. 800mm (more travel can be customized)
Fixture available	Tension, compression, bending, shearing, peeling, tearing, etc.
Overall dimension of main machine (mm)	W500×D450×H1600mm
Motor power (kW)	0.2
Total weight (kg)	About 95kg
Power supply	AC220V,50HZ,1A
Standard configuration
Instrument host	1 set
Test fixture	1 pair
Calibration weight	1
Power cord	1 (220V 10 A)
Instructions for use	1 book
Certificate of conformity	1 copy

Performance Features

Touch screen display, real-time force value, peak value, speed, test times, curve intuitive display.
The design is humanized and the operation is simple and easy.
Instrument storage: 40 test results, any one or more groups can be deleted.
Printout: with micro thermal printer output.
Force unit: N, kN, KGF, GF, LBF optional.
Displacement unit: mm, cm, in optional
Strength unit: Pa, kPa, Mpa, KGF/cm2, LBF/in2 optional.
Protection measures: overforce value protection, limit protection and other protection methods.
High sensitivity, instantaneous decision attenuation, automatic shutdown

Product Software Advantages

Full Chinese or English visual display, suitable for domestic and foreign use!
Test, ascend, descend and return speed can be input and set at will for precise control.
Automatic and quick return after the test is completed, avoiding long waiting and accelerating the test efficiency.
Test result: the test is automatically recorded and saved without manual storage.
Multiple test items and units are available to meet multiple test standards.
High precision: adopt high precision S-type sensor, the maximum precision can reach 0.25%.
Built-in special calibration mode is convenient for the third party measurement and calibration organization to calibrate and certify the instrument.
