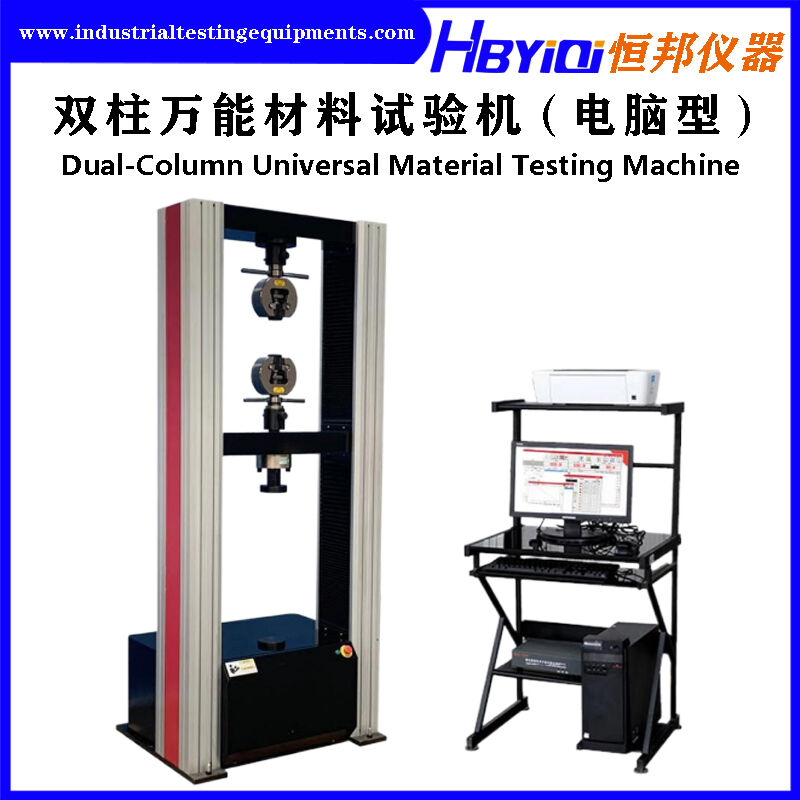

Computer Control Universal Material Testing Equipment UTM Medium Size 2KN-50KN

Universal Material Testing Machine Double-Column UTM Medium Size 2KN-50KN Computer Control

Brand: HBYIQI

Appliance: This equipment is suitable for testing various mechanical properties of non-metallic materials or products, such as tension, compression, bending, shearing, tearing, breaking, peeling, pressure resistance, and puncture.

Techinical Parameter:

Performance Features

• Computer display with real-time visualization of force value, peak value, speed, test times, and curves.
• Humanized design for easy operation.
• Selectable force units: N, kN, kgf, gf, lbf.
• Selectable displacement units: mm, cm, in.
• Selectable strength units: Pa, kPa, MPa, kgf/cm², lbf/in².
• Protection measures: Multiple protection methods including over-force protection and external limit protection.
• High sensitivity with instant judgment of attenuation and automatic shutdown.

Product Software Advantages

• Intuitive display in full Chinese or English, suitable for both domestic and international use!
• Built-in library of multiple physical and mechanical test results.
• Arbitrary input and setting of test, upward, downward, and return speeds for precise control.
• Automatic and rapid return after test completion to avoid long waiting time and improve test efficiency.
• Test results: Automatically recorded, calculated, and saved after test completion, no manual storage required.
• Multiple test items and selectable units to meet various test standards.
• High accuracy: Adopts high-precision S-type sensor with a maximum accuracy of 0.25%.
• Built-in dedicated calibration mode for easy calibration and certification by third-party metrology institutions.

Equipment Details Display

Main Interface of Control System (Comprehensive Content)

Multiple Test Programs (Flexible Editing)

Automatic Recording of Test Analysis Curves

Test Results (Automatic Calculation)

Built-in Library of Hundreds of Test Item Results (Arbitrary Call)

Exportable Test Reports

Built-in Calibration Mode (Convenient and Fast)

Suitable for Various Material Mechanical Tests (Hundreds of Test Fixtures Available for Selection)
