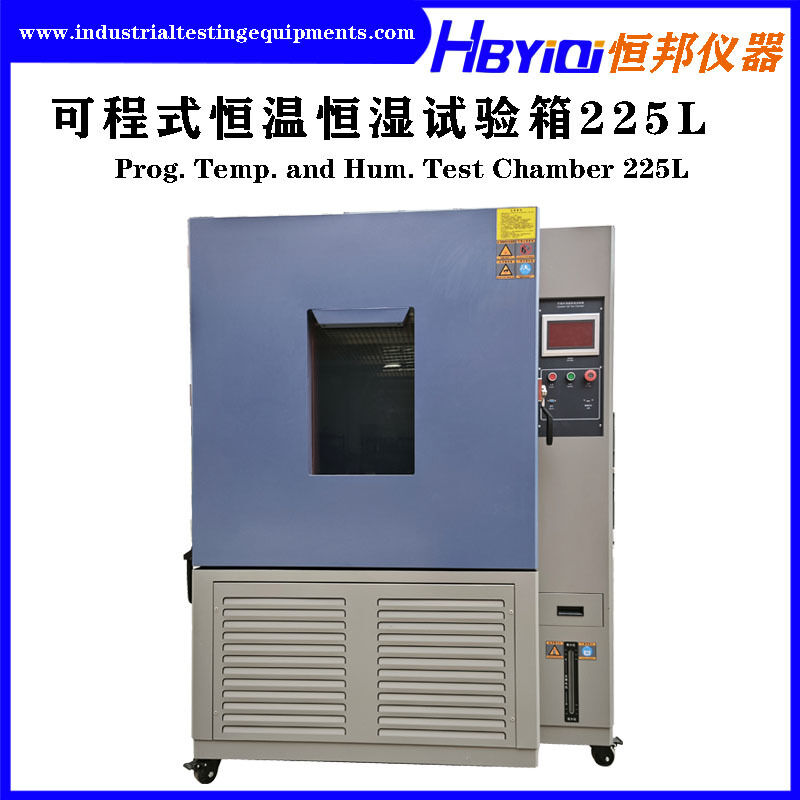

PLC Constant Temperature And Humidity Test Chamber Programmable 225L Volume
PLC Constant Temperature And Humidity Test Chamber Programmable 225L Volume
  • PLC Constant Temperature And Humidity Test Chamber Programmable 225L Volume
  • PLC Constant Temperature And Humidity Test Chamber Programmable 225L Volume
  • PLC Constant Temperature And Humidity Test Chamber Programmable 225L Volume
  • PLC Constant Temperature And Humidity Test Chamber Programmable 225L Volume

PLC Constant Temperature And Humidity Test Chamber Programmable 225L Volume

Product Details:
Place of Origin: China
Brand Name: HBYIQI
Certification: ISO-9001
Model Number: HB-A02-RH-225L（A\B\C)
Detail Information
Place of Origin:
China
Brand Name:
HBYIQI
Certification:
ISO-9001
Model Number:
HB-A02-RH-225L（A\B\C)
Volume:
225L
Heating Rate:
≥3℃/min Or Customization
Cooling Rate:
0.8-1.5℃/min Or Customization
A Type Range:
-20℃~ 150℃ Or Customization
B Type Range:
-40℃~ 150℃ Or Customization
C Type Range:
-65℃~ 150℃ Or Customization
Humidity Range:
(20 - 98)%RH
Humidity Uniformity:
+3.0%RH (>75%RH) +5.0%RH (<75%RH)
Outer Size:
W110*D125*H185
Inner Size:
W60*D50*H750
Highlight:

High Light

Highlight:

PLC Constant Temperature And Humidity Test Chamber

,

225L Volume Constant Humidity Chamber

Trading Information
Minimum Order Quantity:
1SET
Price:
Negotiation
Packaging Details:
International Standard Package
Delivery Time:
15 days
Payment Terms:
T/T
Product Description

Constant Temp& Humidity Test Chamber Programmable PLC 225L High/Low TH -40℃~ 150℃



Brand: HBYIQI



Relevant standards or equivalent requirements:

Complies with the following tests in national standards such as GB, GJB, ISO, IEC, ANSI, ASME, ASTM, JIS, BS, DIN, NF, UNI, TNAI, AS, BDSI, CAS, CA, COSQC, C.S., CSA, CSK, CSN, DGN, DGNT, DS, ELOT, E.S., ESI, GS, ICONTEC, INAPI, INEN, IOS, IRAM, IR, ISIRI, ITINTEC, IS, JS.S, JUS:

  • High-temperature test
  • Low-temperature test
  • High and low temperature cycle test
  • Cold test

  • Dry heat test

  • Humid heat test

  • Alternating humid heat test(Optional)

Application:

The programmable constant temperature and humidity test chamber is mainly used to test the extent to which products, materials, etc. can withstand continuous high-temperature, low-temperature and wet heat environments and undergo cyclic tests, and to simulate in advance the chemical changes and physical damage caused by different climate environments. This equipment is suitable for products such as batteries, electrical and electronic, automotive electromechanical, aerospace, information and communication, national defense science and technology, energy materials, etc.





Technical Parameter

Model HB-A02-RH-225L(ABC)
Volume 225L
Inner Box Dimensions:cm

W60*D50*H75


Outer Box Dimensions:cm

W110*D125*H185


Temperature Range Type A: - 20°C ~ 150°C / Type B: - 40°C ~ 150°C / Type C: - 65°C ~ 150°C
Temperature Resolution 0.01°C
Temperature Fluctuation ±0.5°C
Temperature Uniformity ±2°C
Heating Rate (≥3°C/min, non - linear control, no load) (Fast temperature change rate can be customized)
Cooling Rate (0.8 - 1.5°C/min, non - linear control, no load) (Fast temperature change rate can be customized)
Humidity Range (20 - 98)%RH
Humidity Resolution 0.01%RH
Humidity Fluctuation ±2%RH
Humidity Uniformity +3.0%RH (>75%RH) +5.0%RH (<75%RH)
Temperature and Humidity Control Range Diagram

PLC Constant Temperature And Humidity Test Chamber Programmable 225L Volume 0


Control System PLC balanced temperature and humidity programmable control system
Language Supports Chinese and English
Refrigeration System Adopts well - known compressors and well - known refrigeration system accessories
Heating System Adopts nickel - chromium alloy electric heating wires
Protection Devices Leakage protection, short - circuit protection, over - temperature protection, phase - loss protection, compressor overload and over - heat protection, and fault alarm system.
Shelves 2 shelves are standard (more can be selected)
Wiring Hole Ø50mm/1 hole
Voltage (V) 380V
Power (KW) 6~8KW
Weight (kg) To be confirmed before delivery







Detail Screen Display

  • Control System Interface
  • PLC Constant Temperature And Humidity Test Chamber Programmable 225L Volume 1

​

  • Fixed Value Experiment
  • PLC Constant Temperature And Humidity Test Chamber Programmable 225L Volume 2



  • Program Experiment
  • PLC Constant Temperature And Humidity Test Chamber Programmable 225L Volume 3

​



Tags:

Constant Temperature Humidity Chamber,

Constant Temperature And Humidity Machine,

PLC Constant Temperature And Humidity Test Chamber
