High Temperature High Pressure Water Spray Test Equipment 1000L IPX9K GB4208

Name: High Temperature High Pressure Water Spray Test Equipment 1000L IPX9K GB4208
Brand: Guangdong Hengbang Testing Equipment Co.,Ltd.
SKU: HB-FS-IPX9K-1000L
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	HBYIQI
Certification:	ISO-9001
Model Number:	HB-FS-IPX9K-1000L

Detail Information

Place of Origin:

China

Brand Name:

HBYIQI

Certification:

ISO-9001

Model Number:

HB-FS-IPX9K-1000L

Spray Hole Angles:

0°, 30°, 60°, 90° (vertical Direction)

Spray Holes:

Spray Flow Rate:

14-16L/min

Nozzle Distance:

100-200mm

Turntable Lifting Method:

Manual Adjustment

Spray Pressure:

8000 - 10000 Kpa

Highlight:

High Light

Highlight:

High Pressure Water Spray Test Equipmen

Water Spray Test Equipment 1000L

Trading Information

Minimum Order Quantity:

1SET

Price:

Negotiation

Packaging Details:

International Standard Package

Delivery Time:

15days

Payment Terms:

T/T

Product Description

Waterproof Machine Simulated Rain Test Chamber

Brand: HBYIQI

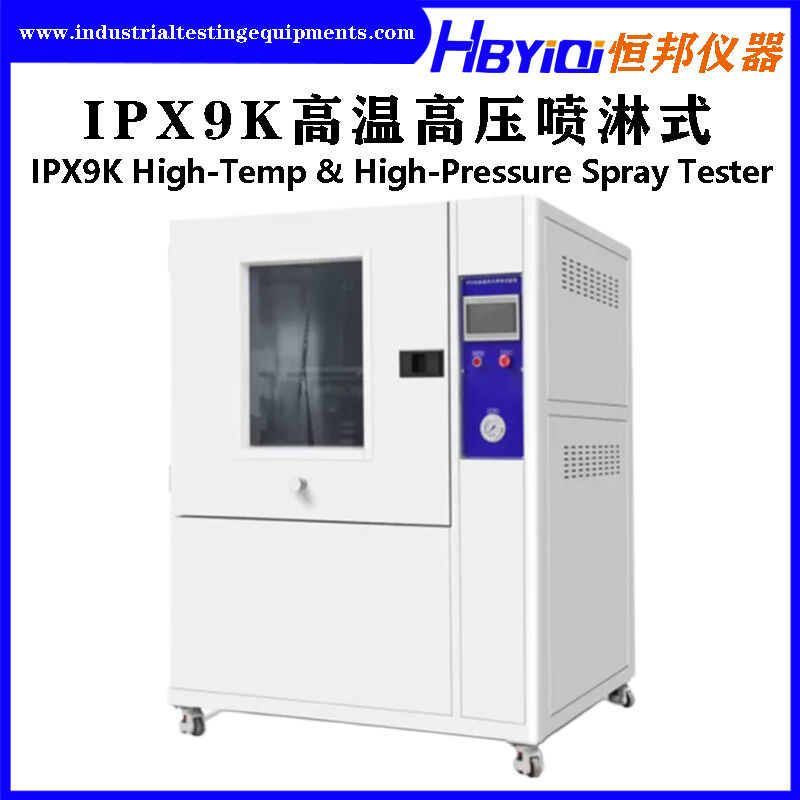

Equipment Name: IPX9K High-Temperature & High-Pressure Spray Waterproof Machine 1000L

Standard Basis:

IEC 60529:2001 "Degrees of protection provided by enclosures(IP Code)"
GB4208-2017 "Enclosure Protection Grade (IP Code)"
GB7000.1 "Luminaires - Part 1: General requirements and tests"

Appliance:

The equipment is suitable for IPX9K waterproof level testing of products.
The main function is to test the physical and other related performance under simulated rainy weather conditions for electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts. After the test, it verifies whether the performance of the product meets the requirements and better to design, improvement, verification and inspection of the product.

Waterproof Grade of the Equipment Enclosure (IP Code)
Grade	Brief Description	Definition
IPX0	No Protection	/
IPX1	Protection Against Vertically Falling Water Drops	Vertically falling water drops have no harmful effects on the equipment enclosure.
IPX2	Protection Against Vertically Falling Water Drops When the Enclosure is Tilted Up by 15°	When the enclosure is tilted up by 15° from any side, vertically falling water drops will have no harmful effects.
IPX3	Protection Against Spraying Water at ±60°	Spraying water, when inclined from the vertical direction to any side up to ±60° and sprayed onto the enclosure, has no harmful effects.
IPX4	Protection Against Spraying Water from Any Direction	Jet water sprayed onto the enclosure from any direction within ±180° has no harmful effects.
IPX5	Protection Against Water Jets	Water jets from a water gun, when shot at the enclosure from any direction, have no harmful effects.
IPX6	Protection Against Strong Water Jets	High - pressure water jets from a water gun, when shot at the enclosure from any direction, have no harmful effects.
IPX7	Protection Against the Effects of Temporary Immersion	When the enclosure is temporarily immersed in water under standard pressure and time conditions, the amount of water ingress is unlikely to cause harmful effects.
IPX8	Protection Against the Effects of Continuous Immersion	Under the conditions negotiated between the manufacturer and the user, which are more severe than those of characteristic number 7, when the enclosure is continuously immersed in water, the amount of water ingress will be unlikely to cause harmful effects.
IPX9K	Protection Against High - Temperature and High - Pressure Water Jets	Four nozzles are distributed at angles (0°, 30°, 60°, 90°) as per the standard drawing. The water temperature for flushing can reach up to 80°C ± 5°C.

Technical parameters:

Model: HB - FS - IPX9K - 1000L
Suitable for conducting IPX9K waterproof level tests for products
Inner Chamber Dimensions	Length 1000 * Depth 1000 * Height 1000 mm
Outer Dimensions	Approximately Length 1450 * Depth 1230 * Height 1820 mm
Number of Spray Holes	4
Spray Hole Angles	0°, 30°, 60°, 90° (vertical direction)
Nozzle Distance	100 - 200mm (manually adjustable)
Diameter of the Sample Turntable	400mm
Turntable Lifting Method	Manual adjustment
Water Spray Flow Rate	14 - 16L/min
Water Spray Temperature	Room temperature (25°C); 80 ± 5°C (deviation temperature can be negotiated)
Water Spray Pressure	8000 - 10000 Kpa
Water Spray Impact Force	0.9 - 1.2N (force value calibration system)
Turntable Load - Bearing Capacity	50KG
Turntable Rotation Speed	1 - 10 r/min (can be set)
Test Time	120S (30S for each position)
Equipment Power Supply	380V, 50Hz
Test Sample Power Supply	220V, 50Hz
Equipment Power	18.0KW
Safety Protection Functions	Leakage protection, water - shortage protection, short - circuit protection

Features:

Suitable for IPX9K waterproof level test;
The chamber shell is made of domestic high quality steel plate, the surface is sprayed with baking paint, beautiful and durable;
The inner box, turntable and wading part are all made of SUS304# stainless steel plate, while ensuring that there is no rust for a long time;
The water supply pipe is equipped with a filter to filter impurities in the water and prevent the nozzle from clogging;
The turntable uses a stepper motor, the speed can be set on the touch screen, and the positive and negative rotation can be controlled (suitable for testing with sample power to prevent winding);
The test box is equipped with sample power socket (AC220,10A); Programmable control power on and off function: power on 0-999min and power off 0-999min (Applicable to the sample in the test need to power on and off test);
The test box is equipped with a LED waterproof light and a large area of observation window on the door to facilitate the observation of the test sample;
The equipment comes with a water tank, recycling water, no need to build a professional waterproof test room. The water tank has high and low water level alarm monitoring to effectively prevent the water pump from being damaged;
The core control component adopts 7 inch touch screen + Panasonic PLC, the electrical components adopt imported brands such as LS, Omron, etc.; The wiring process meets the national standards; the layout of the board is reasonable; the wiring is firm, and the mark is clear;
Touch screen control function: self-developed IPX waterproof level test operation interface, directly select the waterproof level, you can automatically test according to the waterproof level conditions in the standard terms.
