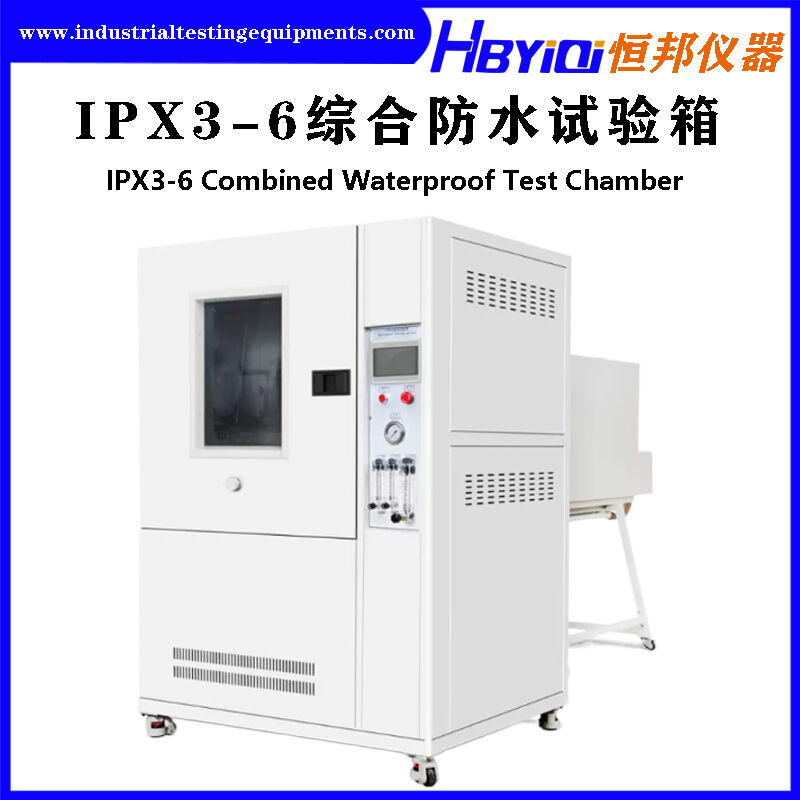

Waterproof Machine Simulated Rain Test Chamber
Brand: HBYIQI
Equipment Name: IPX3-6 Comprehensive Waterproof Machine
Standard Basis:
Appliance:
| Waterproof Grade of the Equipment Enclosure (IP Code) | ||
| Grade | Brief Description | Definition |
| IPX0 | No Protection | / |
| IPX1 | Protection Against Vertically Falling Water Drops | Vertically falling water drops have no harmful effects on the equipment enclosure. |
| IPX2 | Protection Against Vertically Falling Water Drops When the Enclosure is Tilted Up by 15° | When the enclosure is tilted up by 15° from any side, vertically falling water drops will have no harmful effects. |
| IPX3 | Protection Against Spraying Water at ±60° | Spraying water, when inclined from the vertical direction to any side up to ±60° and sprayed onto the enclosure, has no harmful effects. |
| IPX4 | Protection Against Spraying Water from Any Direction | Jet water sprayed onto the enclosure from any direction within ±180° has no harmful effects. |
| IPX5 | Protection Against Water Jets | Water jets from a water gun, when shot at the enclosure from any direction, have no harmful effects. |
| IPX6 | Protection Against Strong Water Jets | High - pressure water jets from a water gun, when shot at the enclosure from any direction, have no harmful effects. |
| IPX7 | Protection Against the Effects of Temporary Immersion | When the enclosure is temporarily immersed in water under standard pressure and time conditions, the amount of water ingress is unlikely to cause harmful effects. |
| IPX8 | Protection Against the Effects of Continuous Immersion | Under the conditions negotiated between the manufacturer and the user, which are more severe than those of characteristic number 7, when the enclosure is continuously immersed in water, the amount of water ingress will be unlikely to cause harmful effects. |
| IPX9K | Protection Against High - Temperature and High - Pressure Water Jets | Four nozzles are distributed at angles (0°, 30°, 60°, 90°) as per the standard drawing. The water temperature for flushing can reach up to 80°C ± 5°C. |
Technical parameters:
| Model | HB-FS-IPX3-6-R400 | |
| Equipment Function | Suitable for conducting waterproof level tests of four levels: IPX3, IPX4, IPX5, and IPX6 for products | |
| Parameters | Inner Chamber Dimensions | Length 900 * Depth 900 * Height 900mm |
| Outer Dimensions | Approximately Length 1350 * Depth 3400 * Height 1755mm | |
| Turntable Diameter | ￠400mm | |
| Maximum Turntable Load - Bearing Capacity | 50KG | |
| Turntable Lifting Height | 400 - 700 mm | |
| Turntable Speed | 1 - 5r/min (precisely adjustable) | |
| Turntable Rotation Method | Continuous forward rotation / Alternating forward and reverse rotation | |
| Flow Rate Adjustment Method | Manual flow rate adjustment using a flow meter with an adjustment panel | |
| Test Time | 0 - 999 min | |
| Total Equipment Mass | Approximately 300kg | |
| Technical Parameters for IPX3 - 4 Waterproof Level | Radius of the Swaying Pipe | R400m |
| Flow Rate of the Swaying Pipe | IPX3 = 1.1L/min ± 5%; IPX4 = 1.8L/min ± 5% | |
| Size of the Water Spray Holes | 0.4mm | |
| Spacing Between Water Spray Holes | 50mm | |
| Inner Diameter of the Swaying Pipe | 15mm | |
| Angle of the Swaying Pipe | 120º (IPX3), 350º (IPX4) | |
| Swaying Speed of the Swaying Pipe | 240° back - and - forth in 4S, 720° back - and - forth in 12S (precisely controlled) | |
| Technical Parameters for IPX5 - 6 Waterproof Level | Size of IPX5 Water Spray Holes | 6.3mm |
| Size of IPX6 Water Spray Holes | 12.5mm | |
| Water Spray Flow Rate of IPX5 | 12.5 ± 0.625L/min | |
| Water Spray Flow Rate of IPX6 | 100 ± 5L/min | |
| Water Pressure (Mpa) | Adjusted according to the specified water flow rate | |
| Spraying Distance | 2.5 meters (distance from the nozzle to the center of the turntable) | |
| Fixing Method of the Spray Gun | Mechanically fixed | |
| Swing Method of the Spray Gun | Up - and - down swing (angle and speed adjustable) | |
| Electrical Parameters | Equipment Power Supply | 380V, 50Hz |
| Test Sample Power Supply | 220V, 50Hz | |
| Equipment Power | 3.0KW | |
| Safety Protection Functions | Leakage protection, water - shortage protection, short - circuit protection | |
