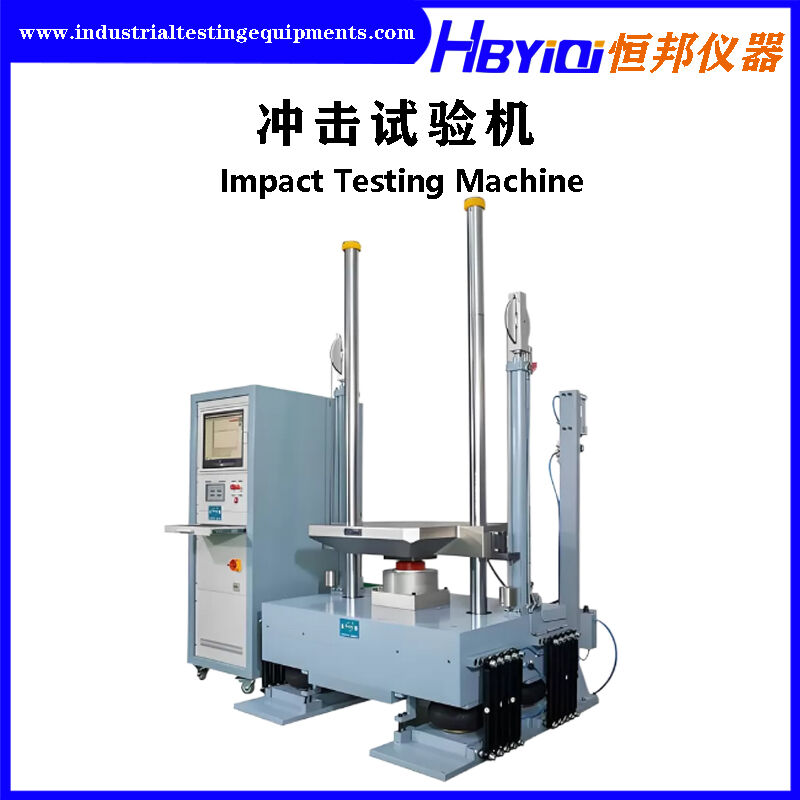

Precise Transportation Vibration Tester Shock Impact Machine Multi Waveform Generator

Name: Precise Transportation Vibration Tester Shock Impact Machine Multi Waveform Generator
Brand: Guangdong Hengbang Testing Equipment Co.,Ltd.
SKU: HBSKT Series
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	HBYIQI
Certification:	ISO-9001
Model Number:	HBSKT Series

Detail Information

Place of Origin:

China

Brand Name:

HBYIQI

Certification:

ISO-9001

Model Number:

HBSKT Series

Waveform:

Half-sine/Saw-tooth/Trapozoidal

Max. Bearing Load:

30-1000kg

Max. Acceleration:

100-600/50-500g

Power Supply:

3φ AC380V 50/60Hz

Highlight:

High Light

Highlight:

Precise Transportation Vibration Tester

Multi Waveform Generator Shock Impact Machine

Trading Information

Minimum Order Quantity:

1SET

Price:

Negotiation

Packaging Details:

International Standard Package

Delivery Time:

15days

Payment Terms:

T/T

Product Description

Transportation Vibration Tester Shock Impact Machine

Brand: HBYIQI

Equipment Appliance:

During the production, transportation, loading and unloading, and use of products, they are inevitably subjected to impacts, collisions, free falls, and overturning. These are all transient excitations acting on objects, causing them to generate significant mechanical characteristic quantities such as velocity, acceleration, and strain rate in an instant. This is completely different from the effects on objects under static loads. This causes malfunctions or even failures of the object in terms of structural strength and performance stability. Therefore, it is highly necessary to study the impact effect and reproduce the impact environment to assess the structural strength and performance stability of objects under the impact environment.

Technical Parameters:

Model		HBSKT30	HBSKT50	HBSKT100	HBSKT200	HBSKT300	HBSKT600	HBSKT1000
Table Size(cm)		40×40	50x60	70x80	100x100	120×120	150x 150	200×200
Max. Specimen Weight(kg)		30	50	100	200	300	600	1000
Max. Acceleration (G)	Half-Sine wave generator	600	600	600	500	500	300	300
	Saw-tooth wave generator	100	100	100	100	100	100	100
	Square generator	100	100	100	60	50	50	50
Pulse duration (ms)	Half-Sine wave generator	60-1	60-2	60-2	60-3	60-3	60-3	60-3
	Saw-tooth wave generator	18~6	18~6	18~6	18~6	18~6	18~6	18~6
	Square generator	12~6	12~6	12~6	12~6	12~6	12~6	12~6
Machine dimension(cm)		82x90x195	120x105x245	130×120×260	150×130×260	200×160×300	230×180×310	250×250×310
Controller cabinet dimension(cm)		W55×D50×H80
Machine weight(Kg)		1050	2000	3200	4200	8500	15500	21500
Power supply		3φ AC380V 50/60Hz Compressed air 0.5~0.8MPa
Standards		GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD810F ISTA UL

THE PRINCIPLES OF OPERATION

WAVEFORM GENERATOR

INSTALLATION REFERENCE DRAWING
