Transportation Vibration Tester
>
Computerized Corrugated Box Compression Testing Machine PC Control 2KN-50KN

Computerized Corrugated Box Compression Testing Machine PC Control 2KN-50KN

Product Details:
Place of Origin: China
Brand Name: HBYIQI
Certification: ISO-9001
Model Number: HB-G01 Series
Detail Information
Place of Origin:
China
Brand Name:
HBYIQI
Certification:
ISO-9001
Model Number:
HB-G01 Series
Control Method:
PC
Test Pressure Capacity:
200kg-5000kg
Test Speed:
12-100mm/min
Test Size Area:
Multi-optional
Power Supply:
AC 220V/50Hz
Test Mode:
Crush / Hold Pressure
Highlight:

High Light

Highlight:

Computerized Corrugated Box Compression Tester

,

PC Control Carton Compression Tester

Trading Information
Minimum Order Quantity:
1SET
Price:
Negotiation
Packaging Details:
International Standard Package
Delivery Time:
15days
Payment Terms:
T/T
Product Description

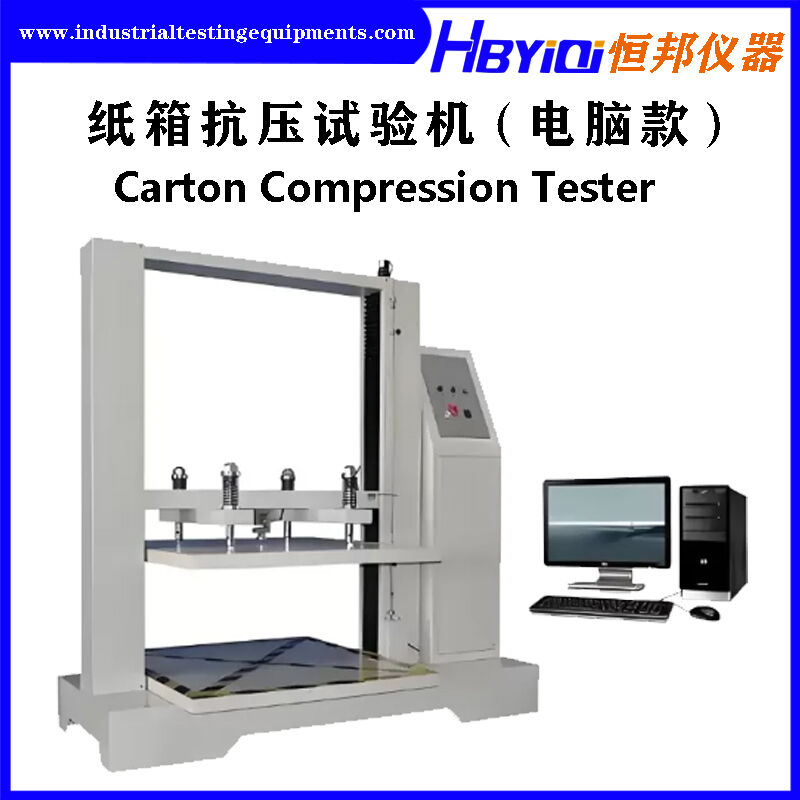

Transportation Vibration Tester Carton Compression Machine Corrugated Box PC Control 2KN-50KN



Brand: HBYIQI



Equipment Name: Carton Compression Tester (Computer Version)



Equipment Model: HB-G01 Series



Equipment Purpose:

The original intention of this machine's design is to test the compressive strength of packaged products, to prevent adverse phenomena such as product deformation and damage caused by insufficient packaging strength during use, handling, stacking, storage and transportation. It is the most direct testing instrument for the compressive strength of cartons or other packaging containers, and is used to determine the load-bearing capacity and stacking height of cartons.

Technical Parameters:

Specification Model HB-G01-60 HB-G01-80 HB-G01-100 HB-G01-120 Accept Customization
Maximum Specimen Size (cm) 60×60×60 80×80×80 100×100×100 120×120×120 Accept Customization
Rated Pressure Options (KG/KN) (200KG/2KN)/(500KG/5KN)/(1000KG/10KN)/(2000KG/20KN)/(5000KG/50KN)
Force Resolution 0.001Kg
Force Accuracy ≤±1%
Force Units Switchable between KG, LB, N
Testing Speed 12—100mm/min (Constant speeds: 12.7, 50, 100mm/min; stepless or specified)
Testing Mode Crush / Hold Pressure
Control Mode Computer PC Control
Transmission System Servo Motor + Ball Screw + Synchronous Pulley
Protection Devices Leakage Protection, Overload Auto-Stop Protection, Upper/Lower Stroke Limit Protection
Weight Approximately 800kg
Power Supply Voltage AC 220V 50HZ
