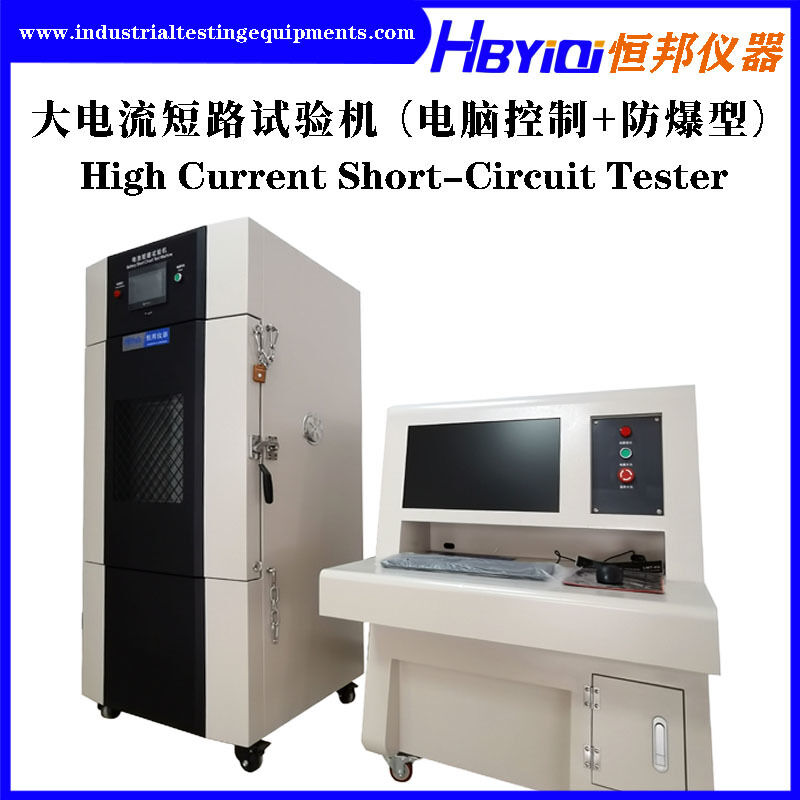

High Current Power Battery Testing Equipment Short Circuit Tester Precision Control

Power And Storage Battery Testing Equipment High Current Short-Circuit Testing Machine

Brand: HBYIQI

Equipment Name: Battery High Current Short-circuit Tester

Standard basis:

GB-38031-2020 Safety requirements for power batteries for electric vehicles;
GB-43854-2024 Safety technical specification for lithium-ion batteries for electric bicycles;
GB-T36972-2018 Lithium-ion battery for electric bicycles;
GBT-31485-2015 Safety requirements and test methods for power batteries for electric vehicles;
GB-T31467.3-2015 Lithium-ion power battery pack for electric vehicles;
GB-T36276-2023 Safety requirements and test methods for lithium-ion batteries for power storage;

Application: As one of the important equipment for battery safety performance testing, the high-current short-circuit testing machine can effectively simulate the battery under overheating or short-circuit conditions to evaluate its safety performance. The high-current short-circuit test chamber adopts advanced control technology and circuit design to realize high-precision short-circuit simulation of batteries.

Technical Parameter

Features

• With high-precision temperature and current control, it can precisely control the temperature and current in the test chamber, making the test data more accurate.
• Equipped with data recording and monitoring systems, temperature and other relevant parameters during the test process can be recorded and monitored in real-time, and test reports can be generated.
• It has safety protection functions such as over-temperature protection, over-voltage protection, and electrical protection to ensure the safety of the test process.

Safety protection design

• Pressure release vent: Automatic explosion-proof pressure relief device

• Smoke outlet: Get rid of the smoke

• Door opening induction switch: Open the door to restrict operation, to prevent misoperation and injury to employees, to maximize the protection of employee safety

• Explosion-proof chain: There are two explosion-proof chains on the left and right of the equipment door to prevent the door from being blown open at a critical time.



• Insulation plate: Prevent battery short circuit



• Double-layer explosion-proof tempered glass: Protection is more secure.



• Explosion-proof mesh: Prevent battery explosion fragments from hitting the window.



• Vacuum Contactor: To frequently switch on and off the normal working current

​
