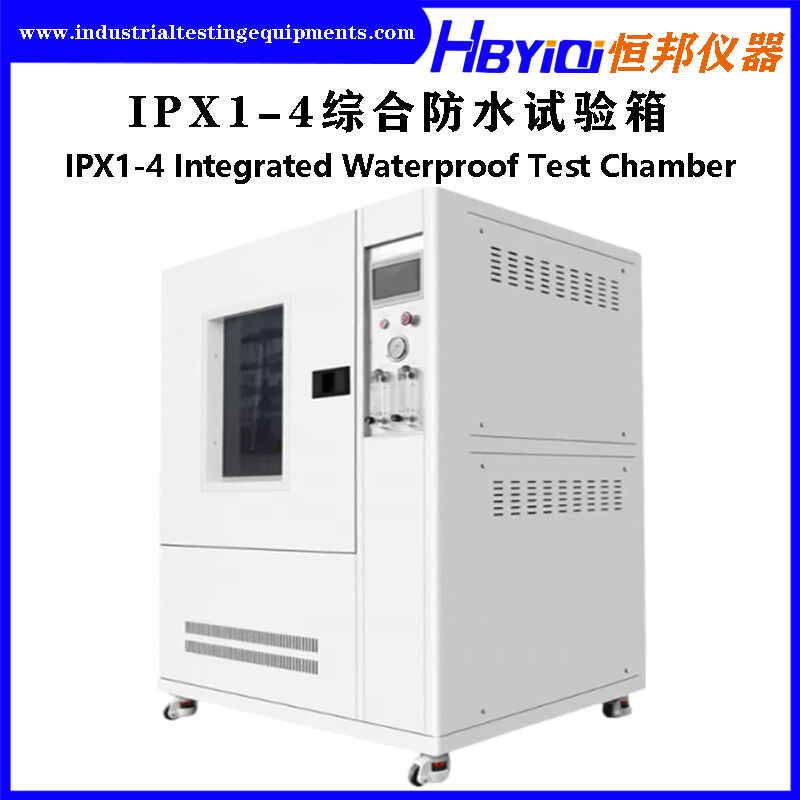

Adjustable Speed Simulated Rain Test Chamber IPX1-4 20kg Waterproof Test Equipment

Waterproof And Dustproof Machine Simulated Rain Test Chamber

Brand: HBYIQI

Equipment Name: IPX1-4 Comprehensive waterproof Test chamber

Standard Basis:

• IEC 60529:2001 "Degrees of protection provided by enclosures(IP Code)"
• GB4208-2017 "Enclosure Protection Grade (IP Code)"
• GB7000.1 "Luminaires - Part 1: General requirements and tests"

Appliance:

• The equipment is suitable for IPX1, IPX2, IPX3, IPX4 waterproof level testing of products.
• The main function is to test the physical and other related performance under simulated rainy weather conditions for electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts. After the test, it verifies whether the performance of the product meets the requirements and better to design, improvement, verification and inspection of the product.

Technical parameters:

Features:

• Suitable for IPX1, IPX2, IPX3, IPX4 waterproof level test;
• The chamber shell is made of domestic high quality steel plate, the surface is sprayed with baking paint, beautiful and durable;
• The inner box, turntable and wading part are all made of SUS304# stainless steel plate, while ensuring that there is no rust for a long time;
• The pendulum tube drive adopts domestic high-quality stepper motor; The pendulum tube speed and angle are accurate and adjustable, and there is no out-of-step problem (out-of-step: it will cause the pendulum tube to act abnormally and crash into the middle turntable shaft, causing equipment damage);
• The water supply pipe is equipped with a filter to filter impurities in the water and prevent the nozzle from clogging;
• The turntable uses a stepper motor, the speed can be set on the touch screen, and the positive and negative rotation can be controlled (suitable for testing with sample power to prevent winding);
• The test box is equipped with sample power socket (AC220,10A); Programmable control power on and off function: power on 0-999min and power off 0-999min (Applicable to the sample in the test need to power on and off test);
• The test box is equipped with a LED waterproof light and a large area of observation window on the door to facilitate the observation of the test sample;
• The equipment comes with a water tank, recycling water, no need to build a professional waterproof test room. The water tank has high and low water level alarm monitoring to effectively prevent the water pump from being damaged;
• The core control component adopts 7 inch touch screen + Panasonic PLC, the electrical components adopt imported brands such as LS, Omron, etc.; The wiring process meets the national standards; the layout of the board is reasonable; the wiring is firm, and the mark is clear;
• Touch screen control function: self-developed IPX waterproof level test operation interface, directly select the waterproof level, you can automatically test according to the waterproof level conditions in the standard terms.

​

Detail Show:

Turntable:

304 stainless steel turntable
It can be tilted at 0° or rotated forward and backward on a 15-turntable；

It can bear a load of over 50KG and supports customization

IPX1 and IPX2

IPX3 and IPX4

The swing pipe Angle of IPX3 is ± 60° / that of IPX4 is ± 180°
