| Place of Origin: | China |
| Brand Name: | HBYIQI |
| Certification: | ISO-9001 |
| Model Number: | HB-DQY-GD-100L（A\B\C) |

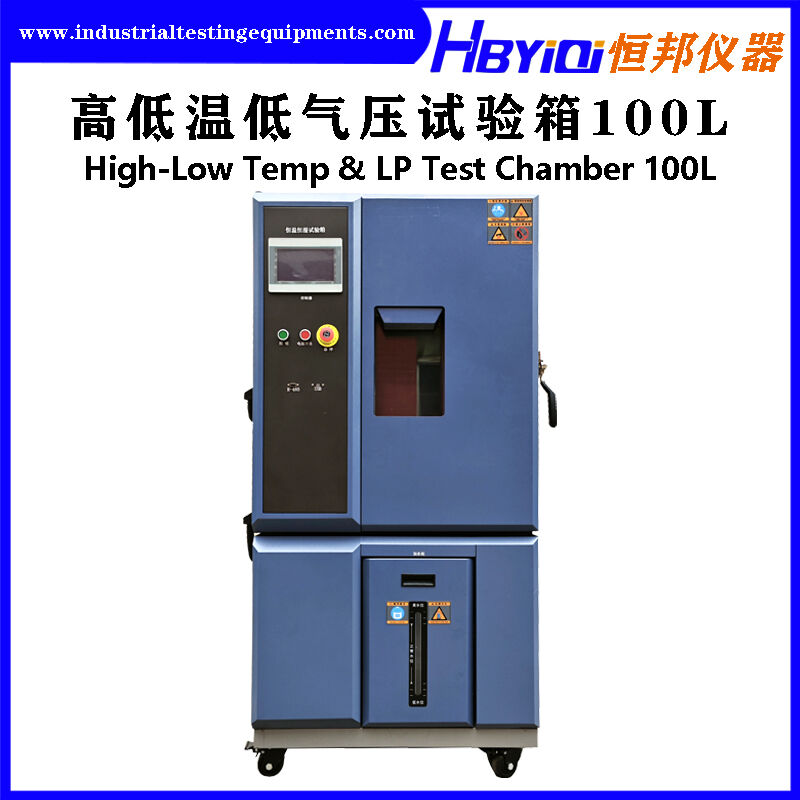

Low Pressure Test Chamber under High and Low Temperature Machine 100L
Equipment Usage
The high and low temperature and low pressure test chamber is used to simulate the climate of high altitude, high altitude areas (plateau areas) for storage, operation, and transportation reliability tests. It can simultaneously conduct electrical performance parameter tests on test specimens while they are powered on. It is applicable to national defense industry, aerospace industry, automation components, automotive parts, batteries, flat panel display groups, industrial and related product materials for high temperature, low temperature, altitude (not higher than 30,000 meters or 45,000 meters above sea level), high and low temperature cycle tests, temperature and altitude comprehensive tests. When conducting high and low temperature tests, this test chamber can be used for tests on heat - dissipating and non - heat - dissipating test samples.
Technical Parameters
|
Model |
HB - DQY - GD - 100L (A/B/C) |
|
Volume |
100L |
|
Inner Chamber Dimensions (cm) |
W50×D40×H50 |
|
Outer Chamber Dimensions |
W78×D135×H158 |
|
Temperature Range Options |
Type A: - 20°C ~ 150°C Type B: - 40°C ~ 150°C Type C: - 65°C ~ 150°C |
|
Temperature Resolution |
0.01°C |
|
Temperature Fluctuation |
±0.5°C |
|
Temperature Uniformity |
±2°C |
|
Heating Rate |
(1 - 3°C/min, non - linear control, no load) (Fast temperature change rate can be customized) |
|
Cooling Rate |
(0.8 - 1°C/min, non - linear control, no load) (Fast temperature change rate can be customized) |
|
Pressure Range Options |
Type A: 101Kpa ~ 20Kpa Type B: 101Kpa ~ 5Kpa Type C: 101Kpa ~ 0.5Kpa |
|
Unit |
Kpa / pa |
|
Resolution |
0.1kPa |
|
Control System |
PLC balanced temperature and pressure programmable control system |
|
Language |
Supports Chinese and English |
|
Refrigeration System |
Adopts internationally renowned compressors and well - known refrigeration system components |
|
Heating System |
Adopts nickel - chromium alloy electric heating wires |
|
Protection Devices |
Leakage protection, short - circuit protection, over - temperature protection, phase - loss protection, compressor overheat protection, compressor overpressure protection, fault alarm system |
|
Shelves |
2 pieces are standard (more can be selected as options) |
|
Terminal Posts |
Optional |
|
Voltage (V) |
220V |
|
Power (KW) |
6 - 8KW |
|
Weight (kg) |
To be confirmed before shipment |
Equipment Detail Display
