Steel Material Low Pressure Test Chamber Vacuum Drying Cabinet 1000L 2.5KW
Steel Material Low Pressure Test Chamber Vacuum Drying Cabinet 1000L 2.5KW
  • Steel Material Low Pressure Test Chamber Vacuum Drying Cabinet 1000L 2.5KW
  • Steel Material Low Pressure Test Chamber Vacuum Drying Cabinet 1000L 2.5KW
  • Steel Material Low Pressure Test Chamber Vacuum Drying Cabinet 1000L 2.5KW
  • Steel Material Low Pressure Test Chamber Vacuum Drying Cabinet 1000L 2.5KW

Steel Material Low Pressure Test Chamber Vacuum Drying Cabinet 1000L 2.5KW

Product Details:
Place of Origin: China
Brand Name: HBYIQI
Certification: ISO-9001
Model Number: HB-DQY-G-1000L(A/B/C)
Detail Information
Place of Origin:
China
Brand Name:
HBYIQI
Certification:
ISO-9001
Model Number:
HB-DQY-G-1000L(A/B/C)
Inner Chamber Size:
W1000xD1000xH1000mm
Outer Chamber Size:
W1350xD11350xH2000mm
Model A:
101Kpa ~ 20Kpa
Model B:
101Kpa ~ 5Kpa
Model C:
101Kpa ~ 0.5Kpa
Heating Method:
Surround/Partition Heating
Highlight:

High Light

Highlight:

Steel Material Low Pressure Test Chamber

,

Vacuum Drying Cabinet 1000L

Trading Information
Minimum Order Quantity:
1SET
Price:
Negotiation
Packaging Details:
International Standard Package
Delivery Time:
15days
Payment Terms:
T/T
Product Description

Brand: Hengbang Instruments HBYIQI

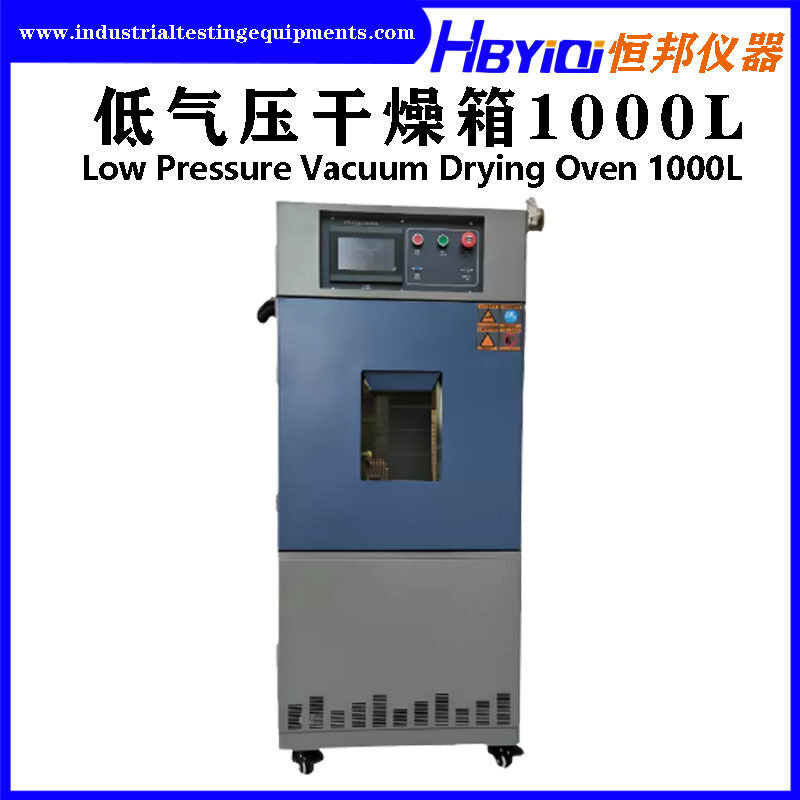

Equipment Name: Low Pressure Drying Oven 1000L

Equipment Purpose

The low pressure drying oven (also known as a vacuum drying oven) is specifically designed for drying heat-sensitive, easily decomposable, and easily oxidizable substances. It can be filled with inert gas (optional), and is especially suitable for quickly drying items with complex compositions.

Technical Parameters

Model HB-DQY-G-1000L(A/B/C) Accept Customization
Inner Chamber Dimensions

W1000xD1000xH1000mm

 Accept Customization
Outer Chamber Dimensions

W1350xD11350xH2000mm

 Accept Customization
Inner Chamber Material Reinforced Steel + Stainless Steel (Thickness ≥ 5.0mm)
Outer Chamber Material SECC Steel Plate, Fine Powder Coating Treatment (Thickness 1.2mm)
Structure All-in-one Structure
Temperature Range RT + 10℃ ~ 200℃
Heating Method Surround Heating / Partition Heating
Control Method PLC Touch Screen Control and Display
Air Pressure Type A: 101Kpa ~ 20Kpa
Type B: 101Kpa ~ 5Kpa
Type C: 101Kpa ~ 0.5Kpa
Unit Kpa / pa
Resolution 0.1kPa
Timing Time 999H59M59S
Visible Window 200x200mm (20mm Thick Tempered Explosion-proof Glass with Protective Steel Mesh)
Power Supply AC 220V 50HZ (or Customized According to Country)
Power (Approx.) 1.5KW 2.5KW
Additional Items Terminal Block Device.



Steel Material Low Pressure Test Chamber Vacuum Drying Cabinet 1000L 2.5KW 0



Steel Material Low Pressure Test Chamber Vacuum Drying Cabinet 1000L 2.5KW 1





For more information, please contact Hengbang Instruments (HBYIQI).
