Low Pressure Test Chamber
>

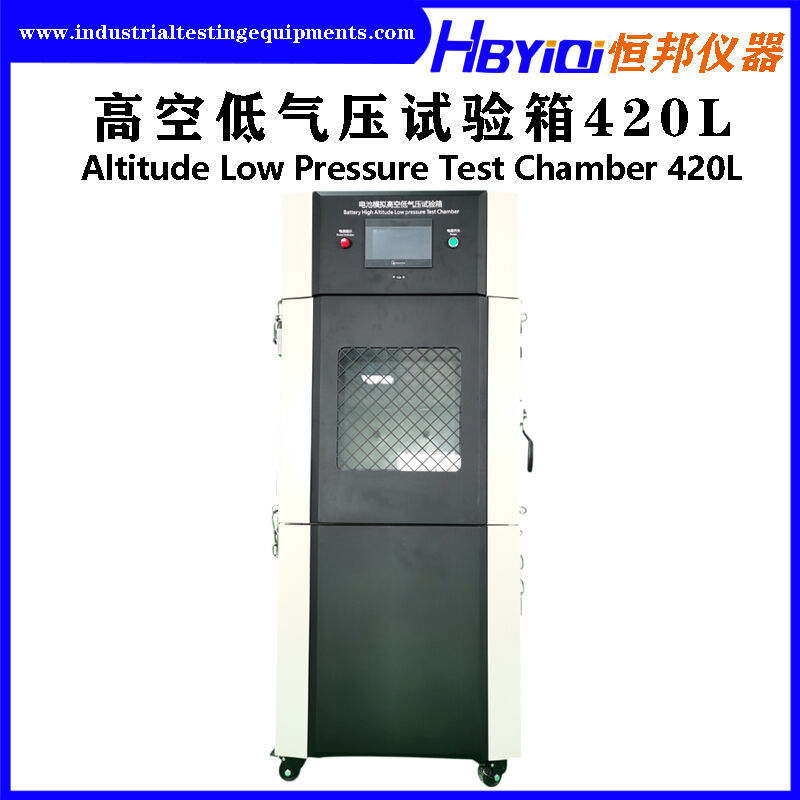

Simulated High Altitude Low Pressure Test Chamber 420L Vacuum Negative Pressure Chamber
Simulated High Altitude Low Pressure Test Chamber 420L Vacuum Negative Pressure Chamber
  • Simulated High Altitude Low Pressure Test Chamber 420L Vacuum Negative Pressure Chamber
  • Simulated High Altitude Low Pressure Test Chamber 420L Vacuum Negative Pressure Chamber
  • Simulated High Altitude Low Pressure Test Chamber 420L Vacuum Negative Pressure Chamber
  • Simulated High Altitude Low Pressure Test Chamber 420L Vacuum Negative Pressure Chamber

Simulated High Altitude Low Pressure Test Chamber 420L Vacuum Negative Pressure Chamber

Product Details:
Place of Origin: China
Brand Name: HBYIQI
Certification: ISO-9001
Model Number: HB-DQY-420L(A/B/C)
Detail Information
Place of Origin:
China
Brand Name:
HBYIQI
Certification:
ISO-9001
Model Number:
HB-DQY-420L(A/B/C)
Inner Chamber Size:
W750xD750xH750mm
Outer Chamber Size:
W1070xD1070xH2000mm
Model A:
101Kpa ~ 20Kpa
Model B:
101Kpa ~ 5Kpa
Model C:
101Kpa ~ 0.5Kpa
Power Supply:
AC 220V 50HZ (or Customized By Country)
Highlight:

High Light

Highlight:

High Altitude Low Pressure Test Chamber

,

420L Vacuum Negative Pressure Chamber

Trading Information
Minimum Order Quantity:
1SET
Price:
Negotiation
Packaging Details:
International Standard Package
Delivery Time:
15days
Payment Terms:
T/T
Product Description

Brand: HBYIQI

Equipment Name: Simulated High Altitude Low Pressure Test Chamber 420L

Equipment Purpose:

The Simulated High Altitude Low Pressure Test Chamber (also known as a vacuum negative pressure chamber) has gained increasing attention due to the widespread application of 3C products, whose safety and performance under extreme environmental conditions are of growing concern. Particularly in high-altitude low-pressure environments, product performance may be severely affected. This chamber uses advanced environmental simulation technology to create conditions similar to actual high-altitude low-pressure environments inside the chamber.



Test Standard:

Refer to relevant standard test requirements or equivalent requirements:

Complies with tests specified in standards of GB, GJB, ISO, IEC, ANSI, ASME, ASTM, JIS, BS, DIN, NF, UNI, TNAI, AS, BDSI, CAS, CA, COSQC, S., CSA, CSK, CSN, DGN, DGNT, DS, ELOT, E.S., ESI, GS, ICONTEC, INAPI, INEN, IOS, IRAM, IR, ISIRI, ITINTEC, IS, JS.S, JUS, and other countries.

Technical Parameters

Model HB-DQY-420L(A/B/C)
Internal Dimensions (Approx.)

W750xD750xH750mm
External Dimensions (Approx.)

W1070xD1070xH2000mm
Internal Material Reinforced steel + stainless steel (thickness ≥5.0mm)
External Material SECC steel plate, fine powder coating treatment (thickness 1.2mm)
Structure All-in-one structure
Control Method PIC touchscreen control and display (programmable setting)
Air Pressure Type A: 101Kpa~20Kpa
Type B: 101Kpa~5Kpa
Type C: 101Kpa~0.5Kpa
Unit Kpa / pa
Resolution 0.1kPa
Timing 999H59M59S
Visible Window 200x200mm (20mm thick tempered explosion-proof glass) with protective steel mesh
Power Supply AC 220V 50HZ (or customized by country)
Power (Approx.) 1.5KW
Additional Options Terminal block device





Simulated High Altitude Low Pressure Test Chamber 420L Vacuum Negative Pressure Chamber 0



Simulated High Altitude Low Pressure Test Chamber 420L Vacuum Negative Pressure Chamber 1



For more information, please contact Hengbang Salesperson(HBYIQI).
