1000L Low Pressure Testing Chamber High Altitude Vacuum Negative Pressure Machine
1000L Low Pressure Testing Chamber High Altitude Vacuum Negative Pressure Machine
  • 1000L Low Pressure Testing Chamber High Altitude Vacuum Negative Pressure Machine
  • 1000L Low Pressure Testing Chamber High Altitude Vacuum Negative Pressure Machine
  • 1000L Low Pressure Testing Chamber High Altitude Vacuum Negative Pressure Machine
  • 1000L Low Pressure Testing Chamber High Altitude Vacuum Negative Pressure Machine

1000L Low Pressure Testing Chamber High Altitude Vacuum Negative Pressure Machine

Product Details:
Place of Origin: China
Brand Name: HBYIQI
Certification: ISO-9001
Model Number: HB-DQY-1000L(A/B/C)
Detail Information
Place of Origin:
China
Brand Name:
HBYIQI
Certification:
ISO-9001
Model Number:
HB-DQY-1000L(A/B/C)
Inner Chamber Size:
W1000xD1000xH1000mm
Outer Chamber Size:
W1350xD11350xH2000mm
Model A:
101Kpa ~ 20Kpa
Model B:
101Kpa ~ 5Kpa
Model C:
101Kpa ~ 0.5Kpa
Power Supply:
AC 220V 50HZ (or Customized By Country)
Highlight:

High Light

Highlight:

1000L Low Pressure Testing Chamber

,

High Altitude Vacuum Negative Pressure Machine

Trading Information
Minimum Order Quantity:
1SET
Price:
Negotiation
Packaging Details:
International Standard Package
Delivery Time:
15days
Payment Terms:
T/T
Product Description

Brand: HBYIQI
Equipment Name: Simulated High Altitude Low Pressure Test Chamber 1000L



Equipment Purpose:

The Simulated High Altitude Low Pressure Test Chamber (also known as a vacuum negative pressure chamber) has gained increasing attention due to the widespread application of 3C products, whose safety and performance under extreme environmental conditions are of growing concern. Particularly in high-altitude low-pressure environments, product performance may be severely affected. This chamber uses advanced environmental simulation technology to create conditions similar to actual high-altitude low-pressure environments inside the chamber.


Test Standard:

Refer to relevant standard test requirements or equivalent requirements:

Complies with tests specified in standards of GB, GJB, ISO, IEC, ANSI, ASME, ASTM, JIS, BS, DIN, NF, UNI, TNAI, AS, BDSI, CAS, CA, COSQC, S., CSA, CSK, CSN, DGN, DGNT, DS, ELOT, E.S., ESI, GS, ICONTEC, INAPI, INEN, IOS, IRAM, IR, ISIRI, ITINTEC, IS, JS.S, JUS, and other countries.



Technical Parameters

Model

HB-DQY-1000L(A/B/C)

Internal Dimensions (Approx.)

W1000xD1000xH1000mm

External Dimensions (Approx.)

W1350xD11350xH2000mm

Internal Material

Reinforced steel + stainless steel (thickness ≥5.0mm)

External Material

SECC steel plate, fine powder coating treatment (thickness 1.2mm)

Structure

All-in-one structure

Control Method

PIC touchscreen control and display (programmable setting)

Air Pressure

Type A: 101Kpa~20Kpa
Type B: 101Kpa~5Kpa
Type C: 101Kpa~0.5Kpa

Unit

Kpa / pa

Resolution

0.1kPa

Timing

999H59M59S

Visible Window

200x200mm (20mm thick tempered explosion-proof glass) with protective steel mesh

Power Supply

AC 220V 50HZ (or customized by country)

Power (Approx.)

2.5KW

Additional Options

Terminal block device

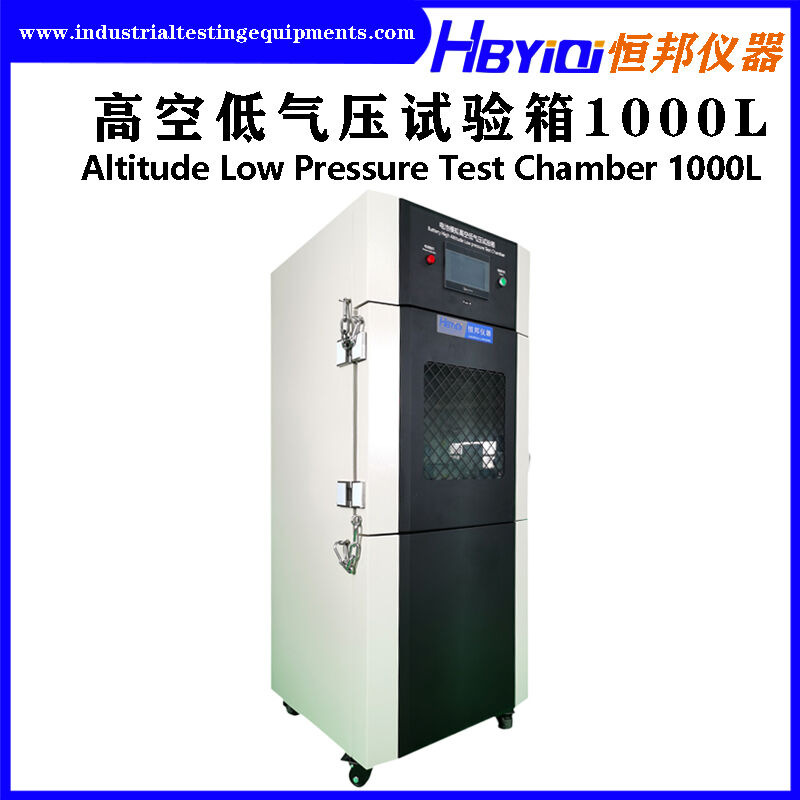

1000L Low Pressure Testing Chamber High Altitude Vacuum Negative Pressure Machine 0

1000L Low Pressure Testing Chamber High Altitude Vacuum Negative Pressure Machine 1

For more information, please contact Hengbang Salesperson(HBYIQI).
