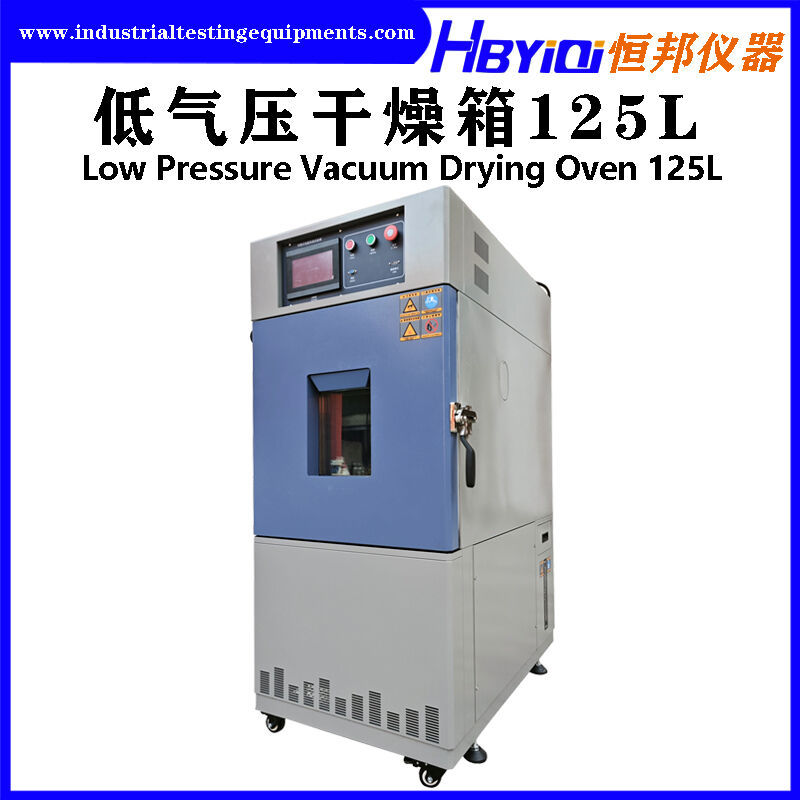

All In One Low Pressure Test Chamber Drying Oven 125L 1KW Touch Control
All In One Low Pressure Test Chamber Drying Oven 125L 1KW Touch Control
  • All In One Low Pressure Test Chamber Drying Oven 125L 1KW Touch Control
  • All In One Low Pressure Test Chamber Drying Oven 125L 1KW Touch Control
  • All In One Low Pressure Test Chamber Drying Oven 125L 1KW Touch Control

All In One Low Pressure Test Chamber Drying Oven 125L 1KW Touch Control

Product Details:
Place of Origin: China
Brand Name: HBYIQI
Certification: ISO-9001
Model Number: HB-DQY-G-125L(A/B/C)
Detail Information
Place of Origin:
China
Brand Name:
HBYIQI
Certification:
ISO-9001
Model Number:
HB-DQY-G-125L(A/B/C)
Inner Chamber Size:
W500xD500xH500mm
Outer Chamber Size:
W820xD820xH1820mm
Model A:
101Kpa ~ 20Kpa
Model B:
101Kpa ~ 5Kpa
Model C:
101Kpa ~ 0.5Kpa
Heating Method:
Surround/Partition Heating
Highlight:

High Light

Highlight:

All In One Low Pressure Test Chamber

,

Touch Control Low Pressure Drying Oven

Trading Information
Minimum Order Quantity:
1SET
Price:
Negotiation
Packaging Details:
International Standard Package
Delivery Time:
15days
Payment Terms:
T/T
Product Description

Brand: Hengbang Instruments HBYIQI

Equipment Name: Low Pressure Drying Oven 125L

Equipment Purpose

The low pressure drying oven (also known as a vacuum drying oven) is specifically designed for drying heat-sensitive, easily decomposable, and easily oxidizable substances. It can be filled with inert gas (optional), and is especially suitable for quickly drying items with complex compositions.

Technical Parameters

Model HB-DQY-G-125L(A/B/C) Accept Customization
Inner Chamber Dimensions W500xD500xH500mm Accept Customization
Outer Chamber Dimensions W820xD820xH1820mm Accept Customization
Inner Chamber Material Reinforced Steel + Stainless Steel (Thickness ≥ 5.0mm)
Outer Chamber Material SECC Steel Plate, Fine Powder Coating Treatment (Thickness 1.2mm)
Structure All-in-one Structure
Temperature Range RT + 10℃ ~ 200℃
Heating Method Surround Heating / Partition Heating
Control Method PLC Touch Screen Control and Display
Air Pressure Type A: 101Kpa ~ 20Kpa
Type B: 101Kpa ~ 5Kpa
Type C: 101Kpa ~ 0.5Kpa
Unit Kpa / pa
Resolution 0.1kPa
Timing Time 999H59M59S
Visible Window 200x200mm (20mm Thick Tempered Explosion-proof Glass with Protective Steel Mesh)
Power Supply AC 220V 50HZ (or Customized According to Country)
Power (Approx.) 1KW 2.5KW
Additional Items Terminal Block Device.



All In One Low Pressure Test Chamber Drying Oven 125L 1KW Touch Control 0



All In One Low Pressure Test Chamber Drying Oven 125L 1KW Touch Control 1





For more information, please contact Hengbang Instruments (HBYIQI).
