| Place of Origin: | China |
| Brand Name: | HBYIQI |
| Certification: | ISO-9001 |
| Model Number: | HB-TQY-01 |

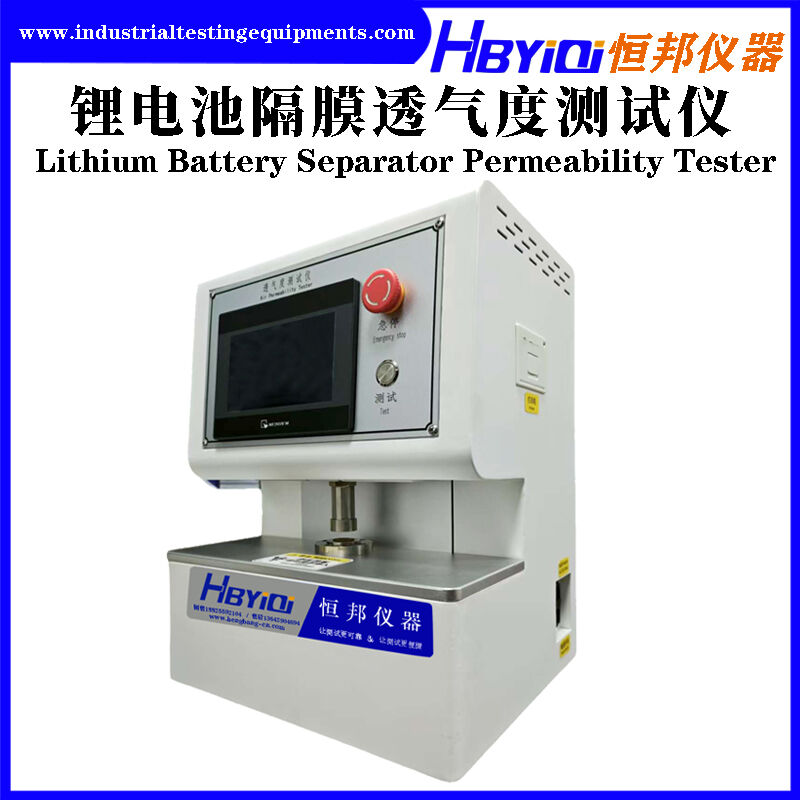

Battery Materials Testing Equipment Gas Transmission Rate Tester Lithium-ion Separator
Brand: HBYIQI
Equipment Name: Gas Transmission Rate Tester
Standard basis: GB/T 36363-2018 Polyolefin Separator for Lithium-ion Batteries
Application: Gas transmission rate tester is suitable for testing the air permeability of lithium battery separators. Under a constant pressure differential of 1.21 kPa, it tests the time required for 100ml of air to pass through an area of 6.45cm² of the separator.
Technical Parameter
|
Equipment Model |
HB-TQY-01 |
|
Control Method |
PLC |
|
Time Measurement Range |
30-10000s |
|
Resolution |
0.1s/100ml |
|
Differential Pressure Range |
0-3KPa |
|
Precision |
±0.1kPa |
| Test Differential Pressure |
1.21kpa |
|
Specimen Size |
≥50mm*50mm |
|
Aperture Size |
Φ9.05mm or Φ28.6 ± 0.1m |
|
Test Area |
6.45cm² |
| Machine Dimension |
400*350*480mm |
|
Power Supply |
220V 50Hz |
|
Power |
100W |
|
Gas Source |
0.3-0.6 mpa |
|
Weight |
28kg |
|
Working Environment |
0 ℃-40 ℃/≤ 70%RH (No Condensation) |
If you want to know more detail about this equipment, don't hesitate to contact with us.
Welcome to your inquiry.
