| Place of Origin: | China |
| Brand Name: | HBYIQI |
| Certification: | CE, ISO-9001 |
| Model Number: | HB-DC07-B-125L |

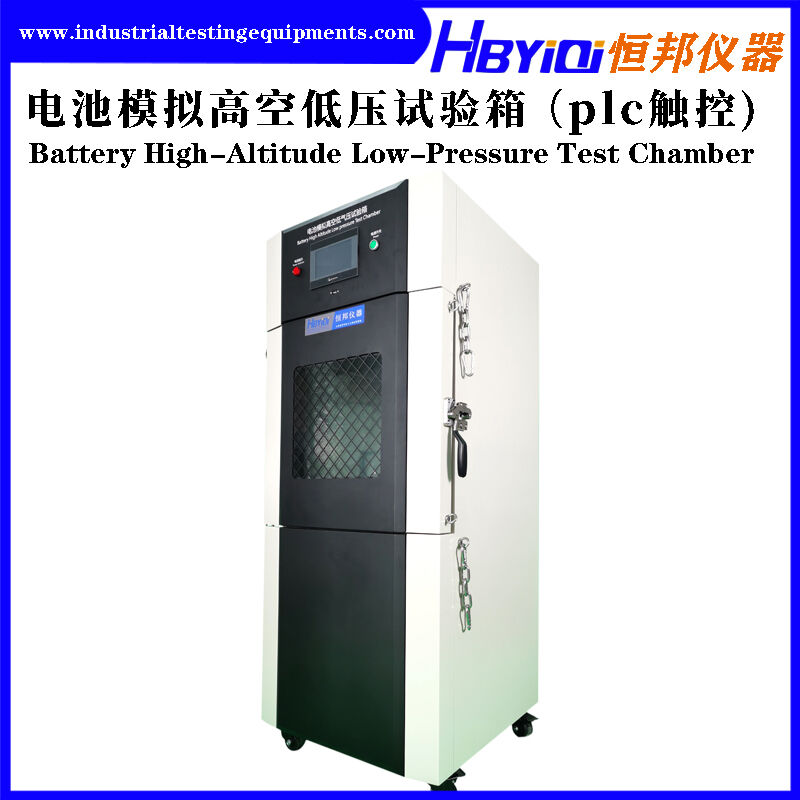

Battery Testing Equipment Battery Simulation High Altitude Low Pressure Test Chamber PLC
Brand: HBYIQI
Compliance with relevant standard test requirements or equivalent requirements:
IEC62133
UL1642
UN38.3
GB 31241-2022
Applicance:
With the wide application of 3C products, the safety and performance of batteries in extreme environments have attracted more and more attention. Especially in the high-altitude low-pressure environment, the performance of the battery may be seriously affected. The simulated high altitude low pressure test chamber adopts advanced environmental simulation technology, which can create a condition similar to the actual high altitude low pressure environment in the box.
Technical Parameter:
| Model | HB-DC07-B-125L | HB-DC07-B-420L | HB-DC07-B-1000L |
| Inner chamber size | W500xD500xH500mm | W750xD750xH750mm | W1000xD1000xH1000mm |
| Outside chamber size | W820xD820xH1820mm | W1070xD1070xH2000mm | W1320xD1320xH2000mm |
|
Reinforced steel + stainless steel (thickness ≧5.0mm) | ||
|
SECC steel plate, fine powder paint treatment (thickness 1.2mm) | ||
|
Integrated machine structure, the door adopts explosion-proof chain | ||
| Temperature range | Without temperature (optional with temperature, meet the standard requirements of 25±5℃) | ||
| Control mode | PLC touch screen control display (programmable) | ||
| Air pressure |
|
||
| Unit | Kpa | ||
| Resolution | 0.1kPa | ||
| Timekeeping time | 999H59M59S | ||
|
300x300mm(20mm thick tempered explosion-proof glass) plus protective steel mesh | ||
| Power supply | AC 220V 50HZ(or customized by country) | ||
| Power | About 1KW | About 1.5KW | About 2.5KW |
| Addable item | Video surveillance system, terminal device. | ||
Safety protection design
Our service
If you face any questions during the purchasing and testing process, the prompt feedback within 48 hours and solutions within 3 working days are our duty.
1.Pre-service
24 Hours online service for your consult to help you to choose proper machines/equipments/testers and detail solutions/suggestions;
2.Mid-service
--Provide all products documents according to your requirement;
--Provide the best offer and discount for mass orders;
--Sign the business contract by both sides;
--Pay the deposit, promptly production and delivery in time;
3. After-service
--English version of installation and operation video/mannual;
--Free change for some parts;
--Remote control technical consult;
--Maintenance plan;
--1 year warranty service;
