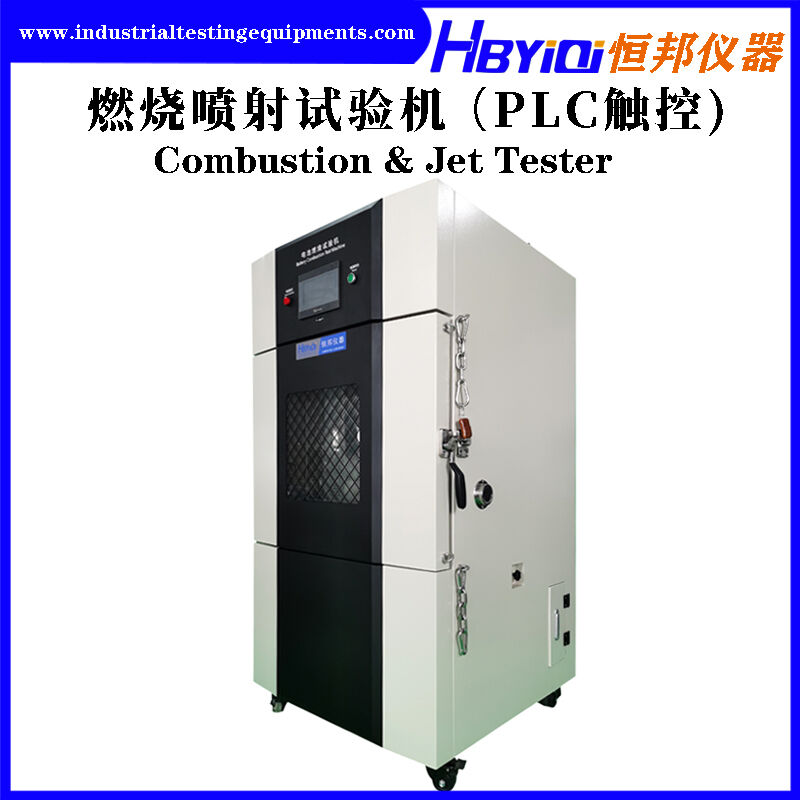

Lithium Battery Combustion Testing Machine Battery Test Chamber UL1642 GB 31241-2022

Name: Lithium Battery Combustion Testing Machine Battery Test Chamber UL1642 GB 31241-2022
Brand: Guangdong Hengbang Testing Equipment Co.,Ltd.
SKU: HB-DC08-B
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	HBYIQI
Certification:	CE, ISO-9001
Model Number:	HB-DC08-B

Detail Information

Place of Origin:

China

Brand Name:

HBYIQI

Certification:

CE, ISO-9001

Model Number:

HB-DC08-B

Control Mode:

PLC+ Remote Control

Combuster:

Bunsen Burner

Flame Height:

10-75±2mm (adjustable)

Ignition Device:

Autoignition

Inside Chamber Size:

W750xD750xH600mm

Outside Chamber Size:

W980xD1000xH1730mm

Highlight:

High Light

Highlight:

Lithium Battery Combustion Testing Machine

Battery Test Chamber UL1642

Trading Information

Minimum Order Quantity:

1 set

Price:

Negotiation

Packaging Details:

International Standard Package

Delivery Time:

15 days

Payment Terms:

T/T

Product Description

Battery Testing Equipment Lithium Battery combustion testing machine

Brand: HBYIQI

Equipment Name: Battery combustion tester

Standard basis: UL1642, GB 31241-2022

Application:

This battery combustion can evaluate the safety performance of batteries under combustion conditions.

Technical Parameter

Model	HB-DC08-B
Control Mode	PLC + Remote Control,test process automatic control
Combuster	Bunsen burner with an inner diameter of 0.375 inches (9.5mm) and a length of approximately 100mm
Flame application time	99H59M59S
Flame height	10-75±2mm (adjustable)
Test rod diameter	1/4 inch (6.35mm) x14 inch (355.6mm)
Test enclosures	Parallel side distance: 24 inches (610mm) Height: 14 inches (305mm), octagonal Angle iron: upper and lower width 12.7mm*12.7mm
Flame height	The wire mesh is placed about 38mm above the flame.
Test aluminum mesh diameter	0.010inch(0.25mm)16 mesh x16 mesh
Octagonal stainless steel mesh cover	The distance between each side is 2feet(610mm), and the height of the octagonal mesh is 1feet(305mm)
Test hole surface diameter	102mm
The ignition device	Automatic ignition
Visual window	390x360 (20mm thick tempered explosion-proof glass) with stainless steel mesh to prevent explosion
Combustion gas requirements	High purity liquefied petroleum gas (equipped by user)
Chamber Structure
Structure	All-in-one
Inside Size	W750xD750xH600mm
Material	304#Stainless steel(Thickness1.0mm)
Outside Size	W980xD1000xH1730mm
Material	Cold rolled plate paint (thickness 1.0mm, total thickness of 100m with inner box)
Thermal Insulation Layer	Thickness100mm
Visible Window	390x360mm with 20mm thick tempered explosion-proof glass and protective steel mesh
Input Power Requirement
Work Voltage	AC 220V 50Hz or Customization Accepted
Power	0.2KW
Optional Parts(Extra Charge)
Addable item	Add temperature acquisition channel, voltage acquisition system, video surveillance system, fire extinguishing system.

Safety protection design

Pressure release vent: Automatic explosion-proof pressure relief device

Lithium Battery Combustion Testing Machine Battery Test Chamber UL1642 GB 31241-2022 0

Smoke outlet: Get rid of the smoke

Lithium Battery Combustion Testing Machine Battery Test Chamber UL1642 GB 31241-2022 1

Door opening induction switch: Open the door to restrict operation, to prevent misoperation and injury to employees, to maximize the protection of employee safety

Explosion-proof chain: There are two explosion-proof chains on the left and right of the equipment door to prevent the door from being blown open at a critical time.

Double-layer explosion-proof tempered glass: Protection is more secure.

Explosion-proof mesh: Prevent battery explosion fragments from hitting the window.

FAQ

Q1: What is your warranty ?

12 months product warranty. Free components will be provided if any performance failure occurs within 12 months caused by non-human damage.

Q2: What about the quality ?

Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.
All of our machine are strictly according to CE & ISO standards.
