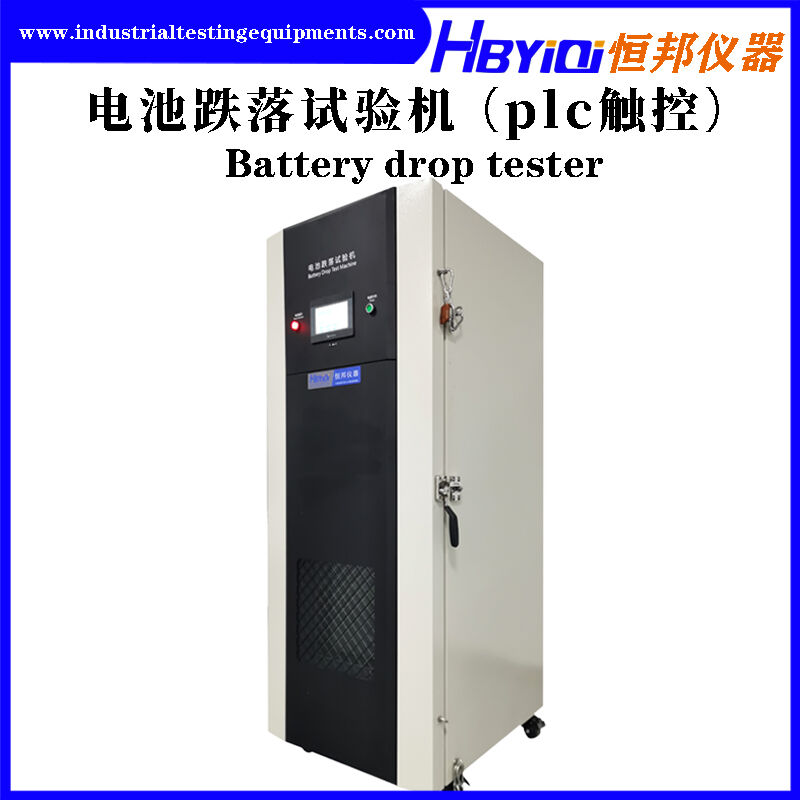

Stainless Steel Electronics Battery Drop Tester 5kg 300-1500mm Adjustable Height
Stainless Steel Electronics Battery Drop Tester 5kg 300-1500mm Adjustable Height
  • Stainless Steel Electronics Battery Drop Tester 5kg 300-1500mm Adjustable Height
  • Stainless Steel Electronics Battery Drop Tester 5kg 300-1500mm Adjustable Height
  • Stainless Steel Electronics Battery Drop Tester 5kg 300-1500mm Adjustable Height
  • Stainless Steel Electronics Battery Drop Tester 5kg 300-1500mm Adjustable Height
  • Stainless Steel Electronics Battery Drop Tester 5kg 300-1500mm Adjustable Height

Stainless Steel Electronics Battery Drop Tester 5kg 300-1500mm Adjustable Height

Product Details:
Place of Origin: China
Brand Name: HBYIQI
Certification: CE, ISO-9001
Model Number: HB-DC01-B
Detail Information
Place of Origin:
China
Brand Name:
HBYIQI
Certification:
CE, ISO-9001
Model Number:
HB-DC01-B
Model:
HB-DC01-B
Drop Height:
300-1500mm(Adjustable)
Lifting Mode:
Electric Lifting
Test Load:
0~5KG
Test Method:
Free Fall
Drop Plate Size:
W500xD500xH10mm
Highlight:

High Light

Highlight:

5kg Electronics Battery Drop Tester

,

Adjustable Height Battery Drop Tester

Trading Information
Minimum Order Quantity:
1 set
Price:
Negotiation
Packaging Details:
International Standard Package
Delivery Time:
15 days
Payment Terms:
T/T
Product Description

Battery Testing Equipment Battery drop tester 5kg 300-1500mm



Brand: HBYIQI



Equipment Name: Battery Drop Tester



Standard basis: IEC62133-2012, UL1642, UN38.3, GB 31241-2022



Application:

Free fall of a single cell or battery pack (e.g. from the top of a table).

Measurement method:
Each fully charged single cell or battery pack drops freely to the concrete floor 3 times from a height of 1.0m. When a single battery or battery pack falls, it should be ensured that each random direction is impacted. After testing, the sample should be left for at least one hour before visual examination. And there is no fire and no explosion.



Technical Parameter



Model

HB-DC01-B
Control Mode PLC + Remote Control
Drop Height

300-1500mm(Adjustable)
Test Method Free Fall
Test Load 0~5KG
Drop Mode Pneumatic drop
Lifting mode Electric lifting
Safety device Fully enclosed explosion-proof device
Air pressure

0.3Mpa
Drop plate size W500xD500xH10mm (solid steel), hardwood, cement board (optional)
Chamber Structure
Structure All-in-one
Inside Size W770xD590xH1650mm
Material 304#Stainless steel(Thickness1.0mm)
Outside Size W860xD900xH2020mm
Material Cold rolled plate paint (thickness 1.0mm, total thickness of 100m with inner box)
Thermal Insulation Layer Thickness100mm
Visible Window 300x300mm with 20mm thick tempered explosion-proof glass and protective steel mesh
Input Power Requirement
Work Voltage AC 220V 50Hz or Customization Accepted
Power 0.75KW
Optional Parts(Extra Charge)
Addable item Add temperature acquisition channel, voltage acquisition system, video surveillance system, smoke alarm system, fire extinguishing system.



Safety protection design

  • Pressure release vent: Automatic explosion-proof pressure relief device

Stainless Steel Electronics Battery Drop Tester 5kg 300-1500mm Adjustable Height 0



  • Smoke outlet: Get rid of the smoke

Stainless Steel Electronics Battery Drop Tester 5kg 300-1500mm Adjustable Height 1



  • Door opening induction switch: Open the door to restrict operation, to prevent misoperation and injury to employees, to maximize the protection of employee safety
Stainless Steel Electronics Battery Drop Tester 5kg 300-1500mm Adjustable Height 2

  • Explosion-proof chain: There are two explosion-proof chains on the left and right of the equipment door to prevent the door from being blown open at a critical time.
Stainless Steel Electronics Battery Drop Tester 5kg 300-1500mm Adjustable Height 3
  • Double-layer explosion-proof tempered glass: Protection is more secure.
Stainless Steel Electronics Battery Drop Tester 5kg 300-1500mm Adjustable Height 4

  • Explosion-proof mesh: Prevent battery explosion fragments from hitting the window.
Stainless Steel Electronics Battery Drop Tester 5kg 300-1500mm Adjustable Height 5

FAQ

Q1: What is your warranty ?

  • 12 months product warranty. Free components will be provided if any performance failure occurs within 12 months caused by non-human damage.

Q2: What about the quality ?

  • Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.
  • All of our machine are strictly according to CE & ISO standards.
