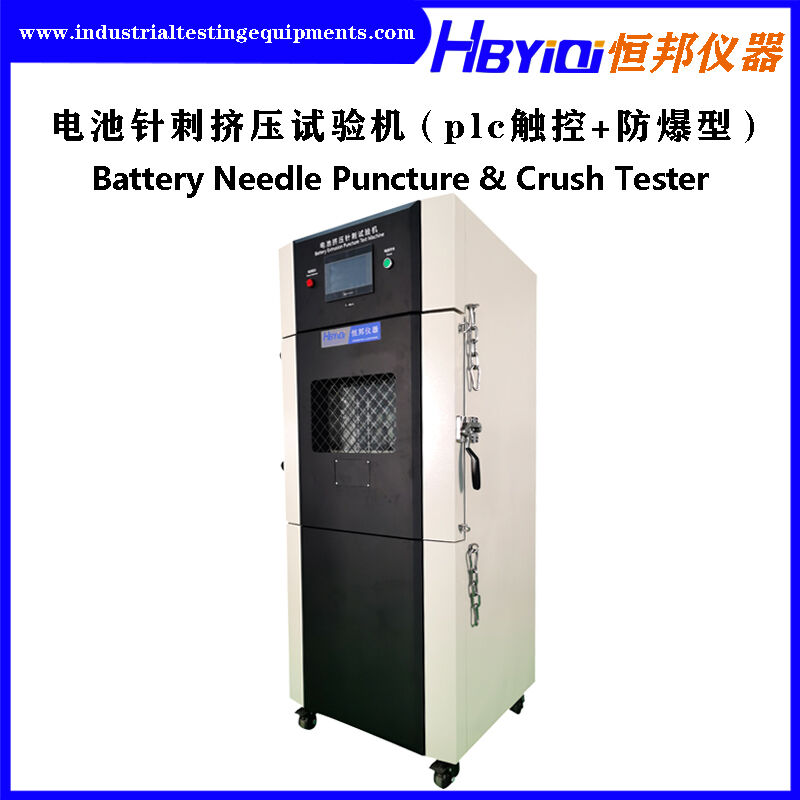

Custom PLC Battery Testing Equipment Battery Needle Extrusion Test Chamber 220V
Custom PLC Battery Testing Equipment Battery Needle Extrusion Test Chamber 220V
  • Custom PLC Battery Testing Equipment Battery Needle Extrusion Test Chamber 220V
  • Custom PLC Battery Testing Equipment Battery Needle Extrusion Test Chamber 220V
  • Custom PLC Battery Testing Equipment Battery Needle Extrusion Test Chamber 220V
  • Custom PLC Battery Testing Equipment Battery Needle Extrusion Test Chamber 220V
  • Custom PLC Battery Testing Equipment Battery Needle Extrusion Test Chamber 220V

Custom PLC Battery Testing Equipment Battery Needle Extrusion Test Chamber 220V

Product Details:
Place of Origin: China
Brand Name: HBYIQI
Certification: CE, ISO-9001
Model Number: HB-DC34-B-20KN
Detail Information
Place of Origin:
China
Brand Name:
HBYIQI
Certification:
CE, ISO-9001
Model Number:
HB-DC34-B-20KN
Control Mode:
PLC With Integrated Type
Power Supply:
AC 220V 50HZ
Squeeze Range:
0-300mm
Squeeze Speed:
0.01-15mm/s (Adjustable)
Test Channel:
Voltage, Temperature, Video
Data Collection:
Pressure, Voltage, Temperature, Displacement
Highlight:

High Light

Highlight:

PLC Battery Testing Equipment

,

220V Battery Needle Extrusion Test Chamber

Trading Information
Minimum Order Quantity:
1SET
Price:
Negotiation
Packaging Details:
International Standard Package
Delivery Time:
15 days
Payment Terms:
T/T
Product Description

Battery Testing Equipment Battery Needle Extrusion Testing Machine

Brand: HBYIQI

Equipment name: Battery needle extrusion testing machine (plc touch + explosion-proof type)

Standard Basis:
IEC62133-2012
UL1642
UN38.3
GB 31241-2022

Appliance:
As one of the important equipment for battery safety performance testing, the temperature-controlled battery needling extrusion testing machine simulates the situation of the battery being squeezed or needling during the use, transportation and storage of all kinds of batteries, and artificially presents the different conditions that may occur when the battery is subjected to strong external extrusion or sharp object puncture.


Technical Parameter:

Model HB-DC34-B-20KN
Control Mode Integrated, PLC touch screen
Extrusion speed 0.01-15mm/s (Adjustable)
Drive mode Motor servo
Unit conversion Kg/N/Lb
Extrusion range 0-300mm
Extrusion accuracy ± 0.5%
Squeeze hold time 0-99 hours, 99 minutes, and 99 seconds
Power supply AC 220V 50HZ
Test mode The master control software can simultaneously collect and control the force, displacement, voltage and temperature changes in the extrusion process, and make corresponding program control according to test standard requirements.
Voltage measurement (standard 1 channel)
Voltage measurement range 0-10V or 0-100V (optional) (multi-channel can be customized on request)
Voltage measurement accuracy F.S±0.5%
Battery surface temperature measurement (standard 1 channel)
Temperature range RT-1000℃ (multi-channel can be customized according to requirements)
Temperature deviation ≤±2℃
Temperature resolution 0.1°C
Video recording (standard 1 channel)
Video recording HD camera, taking pictures, video, recording storage
Data acquisition
Data collection pressure, voltage, temperature, displacement
Data output pressure, voltage, temperature, showing record storage, test data can be directly exported with U disk screenshot;



Box structure
Structure All-in-one Machine
Inner box size W600xD500xH500mm
Inner box material 304# stainless steel (thickness 1.0mm)
Outer box size W820xD820xH1820mm
Outer box material Cold rolled plate paint (thickness 1.0mm, total thickness of 100mm with inner box)
Insulation layer thickness 100mm
Visual window 300x300mm (20mm thick tempered explosion-proof glass) plus protective steel mesh
Input power requirements
Power supply AC 220V 50HZ or customized by country
Power 1.5KW
Battery tooling
Battery extrusion tooling 1 set (can be customized according to battery specifications)
Battery needling tools 1 set (can be customized according to battery specifications)
Optional parts
Added item Adding temperature acquisition channel, voltage acquisition system, video monitoring system, smoke alarm system, fire extinguishing system, fixture.


Safety Protection Design

  • Pressure release vent: Automatic explosion-proof pressure relief device

Custom PLC Battery Testing Equipment Battery Needle Extrusion Test Chamber 220V 0


  • Smoke outlet: Get rid of the smoke

Custom PLC Battery Testing Equipment Battery Needle Extrusion Test Chamber 220V 1


  • Door opening induction switch: Open the door to restrict operation, to prevent misoperation and injury to employees, to maximize the protection of employee safety
Custom PLC Battery Testing Equipment Battery Needle Extrusion Test Chamber 220V 2

  • Explosion-proof chain: There are two explosion-proof chains on the left and right of the equipment door to prevent the door from being blown open at a critical time.
Custom PLC Battery Testing Equipment Battery Needle Extrusion Test Chamber 220V 3

  • Insulation plate: Prevent battery short circuit
Custom PLC Battery Testing Equipment Battery Needle Extrusion Test Chamber 220V 4

  • Double-layer explosion-proof tempered glass: Protection is more secure.
Custom PLC Battery Testing Equipment Battery Needle Extrusion Test Chamber 220V 5

  • Explosion-proof mesh: Prevent battery explosion fragments from hitting the window.
Custom PLC Battery Testing Equipment Battery Needle Extrusion Test Chamber 220V 6

If you want to know more information about this machine, leave your message for the requirement freely, we'd love to provide the best service for you asap.
