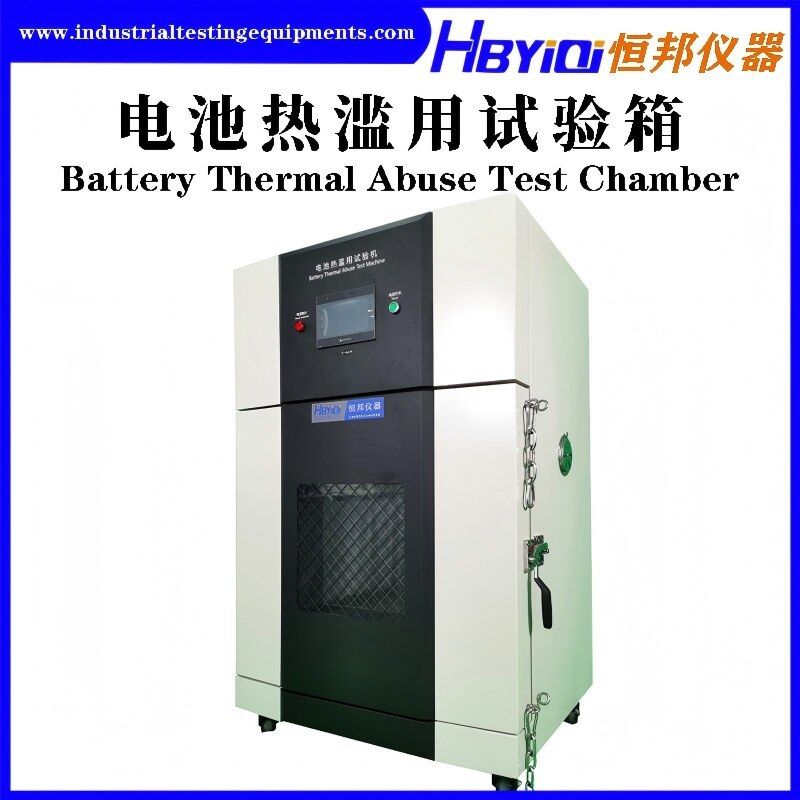

Adjustable Temperature EV Battery Heat Abuse Test Chamber Battery Thermal Abuse Analyzer
Adjustable Temperature EV Battery Heat Abuse Test Chamber Battery Thermal Abuse Analyzer
  • Adjustable Temperature EV Battery Heat Abuse Test Chamber Battery Thermal Abuse Analyzer
  • Adjustable Temperature EV Battery Heat Abuse Test Chamber Battery Thermal Abuse Analyzer
  • Adjustable Temperature EV Battery Heat Abuse Test Chamber Battery Thermal Abuse Analyzer
  • Adjustable Temperature EV Battery Heat Abuse Test Chamber Battery Thermal Abuse Analyzer
  • Adjustable Temperature EV Battery Heat Abuse Test Chamber Battery Thermal Abuse Analyzer

Adjustable Temperature EV Battery Heat Abuse Test Chamber Battery Thermal Abuse Analyzer

Product Details:
Place of Origin: China
Brand Name: HBYIQI
Certification: CE, ISO-9001
Model Number: HB-DC09-B-125L
Detail Information
Place of Origin:
China
Brand Name:
HBYIQI
Certification:
CE, ISO-9001
Model Number:
HB-DC09-B-125L
Inner Chamber Size:
W500xD500xH500mm
Outside Chamber Size:
W1060xD830xH1520mm
Temperature Range:
Adjustable Control Within RT+10℃-200℃
Control Mode:
PLC
Highlight:

High Light

Highlight:

EV Battery Heat Abuse Test Chamber

,

Adjustable Temperature Battery Thermal Abuse Analyzer

Trading Information
Minimum Order Quantity:
1 set
Price:
Negotiation
Packaging Details:
International Standard Package
Delivery Time:
15 days
Payment Terms:
T/T
Product Description

Battery Testing Equipment Battery Heat Abuse Test Chamber PLC



Brand: HBYIQI



Equipment Name: Battery Heat Abuse Test Chamber



Standard basis: IEC62133, UL1642, GB 31241-2022



Application:  When fully charged according to the specified test method, the battery is placed in battery heat abuse test chamber at (5±2) ℃/min to heat up. When the temperature in the box reaches 130°C ±2°C, the temperature is kept constant for 30min to simulate the working condition of the battery in a high temperature environment. The battery are not allowed to catch fire and explode.



Technical Parameter

Model

HB-DC09-B-125L

HB-DC09-B-420L

HB-DC09-B-1000L

Inner chamber size

W500xD500xH500mm

W750xD750xH750mm

W1000xD1000xH1000mm

Outside chamber size

W1060xD830xH1520mm

W1300xD1080xH1780mm

W1560xD1330xH2020mm

Inner chamber materials

Reinforced steel + stainless steel (thickness ≧1.0mm)

Outside chamber materials

SECC steel plate, fine powder paint treatment (thickness 1.2mm)

Structure

Integrated machine structure, the door adopts explosion-proof chain

Visible window

300x300mm(20mm thick tempered explosion-proof glass) plus protective steel mesh

Control mode

PLC

Temperature range

Adjustable control within RT+10℃-200℃

Control accuracy

±0.5℃

Temperature deviation

±2℃(no-load)

Temperature-increase rate

(5±2)℃/min

Timekeeping time

9999H59M59S

USB port

With USB interface, test data can be exported

Test port

There is a test hole with a diameter of 50mm and a hole cover located on the left and right sides of the window.
Insulation Material Imported high density glass rock wool, good heat insulation, to maximize the temperature moisture, anti-compaction;
The material is high temperature resistant silica gel, which can withstand the high temperature of more than 300 degrees for a long time

Power supply

AC 220V 50HZ(or customized by the country)

Power

4KW

6KW

9KW

Addable item

PC computer software, video surveillance, battery surface temperature monitoring system, voltage monitoring system



Safety protection design

  • Pressure release vent: Automatic explosion-proof pressure relief device

Adjustable Temperature EV Battery Heat Abuse Test Chamber Battery Thermal Abuse Analyzer 0



  • Smoke outlet: Get rid of the smoke

Adjustable Temperature EV Battery Heat Abuse Test Chamber Battery Thermal Abuse Analyzer 1



  • Door opening induction switch: Open the door to restrict operation, to prevent misoperation and injury to employees, to maximize the protection of employee safety
Adjustable Temperature EV Battery Heat Abuse Test Chamber Battery Thermal Abuse Analyzer 2

  • Explosion-proof chain: There are two explosion-proof chains on the left and right of the equipment door to prevent the door from being blown open at a critical time.
Adjustable Temperature EV Battery Heat Abuse Test Chamber Battery Thermal Abuse Analyzer 3

  • Mabel Insulation plate: Prevent battery short circuit
Adjustable Temperature EV Battery Heat Abuse Test Chamber Battery Thermal Abuse Analyzer 4

  • Double-layer explosion-proof tempered glass: Protection is more secure.
Adjustable Temperature EV Battery Heat Abuse Test Chamber Battery Thermal Abuse Analyzer 5

  • Explosion-proof mesh: Prevent battery explosion fragments from hitting the window.
Adjustable Temperature EV Battery Heat Abuse Test Chamber Battery Thermal Abuse Analyzer 6

If you want to know more information about this machine, leave your message for the requirement freely, we'd love to provide the best service for you asap.
