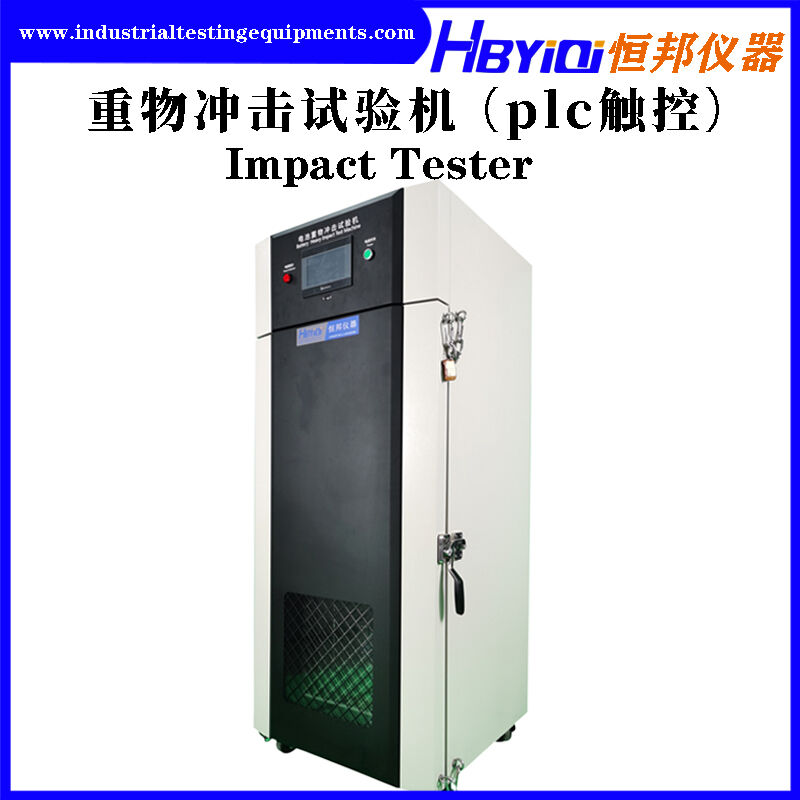

Steel Constructed Battery Testing Equipment Battery Heavy Impact Tester 9.1KG Strength
Steel Constructed Battery Testing Equipment Battery Heavy Impact Tester 9.1KG Strength
  • Steel Constructed Battery Testing Equipment Battery Heavy Impact Tester 9.1KG Strength
  • Steel Constructed Battery Testing Equipment Battery Heavy Impact Tester 9.1KG Strength
  • Steel Constructed Battery Testing Equipment Battery Heavy Impact Tester 9.1KG Strength
  • Steel Constructed Battery Testing Equipment Battery Heavy Impact Tester 9.1KG Strength
  • Steel Constructed Battery Testing Equipment Battery Heavy Impact Tester 9.1KG Strength

Steel Constructed Battery Testing Equipment Battery Heavy Impact Tester 9.1KG Strength

Product Details:
Place of Origin: China
Brand Name: HBYIQI
Certification: CE, ISO-9001
Model Number: HB-DC05-B
Detail Information
Place of Origin:
China
Brand Name:
HBYIQI
Certification:
CE, ISO-9001
Model Number:
HB-DC05-B
Control Mode:
PLC
Ball Weight:
9.1Kg
Rod Diameter:
15.8mm
Falling Height:
0-700mm(Adjustable)
Inner Box Size:
W650mm*D500mm*H1240mm
Outside Box Size:
W820mm*D820mm*H1820mm
Highlight:

High Light

Highlight:

Steel Constructed Battery Testing Equipment

,

9.1KG Strength Battery Heavy Impact Tester

Trading Information
Minimum Order Quantity:
1SET
Price:
Negotiation
Packaging Details:
International Standard Package
Delivery Time:
15 days
Payment Terms:
T/T
Product Description

Battery Testing Equipment Battery Heavy Impact Tester 9.1KG Strength Test PLC



Brand: HBYIQI



Equipment Name: Battery Heavy Impact Tester



Appliance: The test sample battery should be placed on a flat surface. A 15.8mm diameter rod is cross-placed in the center of the sample. One 9.1KG or a 10KG weight was dropped onto the sample from a height of 610mm. Each sample cell is subjected to only one shock, and different samples are used for each test. The battery should not catch fire or explode.



Technical Parameter:

Model

HB-DC05-B

Control Mode

PLC touch + Remote Control

Structure

Integrated machine structure, the door adopts explosion-proof lock + explosion-proof chain

Ball weight

9.1kg±0.1kg

Falling height

0-700mm(Adjustable)

Rod diameter

15.8mm

Air outlet

100mm Located above the back of the box

Lifting Mode

Electric lift

Upper and lower impact surface

Steel plate

Chamber Structure

Structure

Intergrated

Inner box size

W650mm*D500mm*H1240mm

Outside box size

W820mm*D820mm*H1820mm

Inner box materials

304#stainless steel(thickness1.0mm)

Outside box materials

Cold rolled plate paint (thickness 1.0mm, total thickness of 100m with inner box)

Visible window

300x300mm (Thickness 20mm tempered explosion-proof glass) plus protective steel mesh

Input Requirement

Power supply

AC 220V 50HZ or customization

Power

0.5KW

Optional Item(Extra charge)

Addable item

Add temperature acquisition channel, voltage acquisition system, video surveillance system, smoke alarm system, fire extinguishing system.



Safety protection design

  • Pressure release vent: Automatic explosion-proof pressure relief device

Steel Constructed Battery Testing Equipment Battery Heavy Impact Tester 9.1KG Strength 0



  • Smoke outlet: Get rid of the smoke

Steel Constructed Battery Testing Equipment Battery Heavy Impact Tester 9.1KG Strength 1



  • Door opening induction switch: Open the door to restrict operation, to prevent misoperation and injury to employees, to maximize the protection of employee safety
Steel Constructed Battery Testing Equipment Battery Heavy Impact Tester 9.1KG Strength 2

  • Explosion-proof chain: There are two explosion-proof chains on the left and right of the equipment door to prevent the door from being blown open at a critical time.
Steel Constructed Battery Testing Equipment Battery Heavy Impact Tester 9.1KG Strength 3

  • Insulation tape in inner box: Prevent battery short circuit
Steel Constructed Battery Testing Equipment Battery Heavy Impact Tester 9.1KG Strength 4

  • Double-layer explosion-proof tempered glass: Protection is more secure.
Steel Constructed Battery Testing Equipment Battery Heavy Impact Tester 9.1KG Strength 5

  • Explosion-proof mesh: Prevent battery explosion fragments from hitting the window.
Steel Constructed Battery Testing Equipment Battery Heavy Impact Tester 9.1KG Strength 6

FAQ

Q1: What is your warranty ?

  • 12 months product warranty. Free components will be provided if any performance failure occurs within 12 months caused by non-human damage.

Q2: What about the quality ?

  • Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.
  • All of our machine are strictly according to CE & ISO standards.
