| Place of Origin: | China |
| Brand Name: | HBYIQI |
| Certification: | CE, ISO-9001 |
| Model Number: | HB-DC10-B |

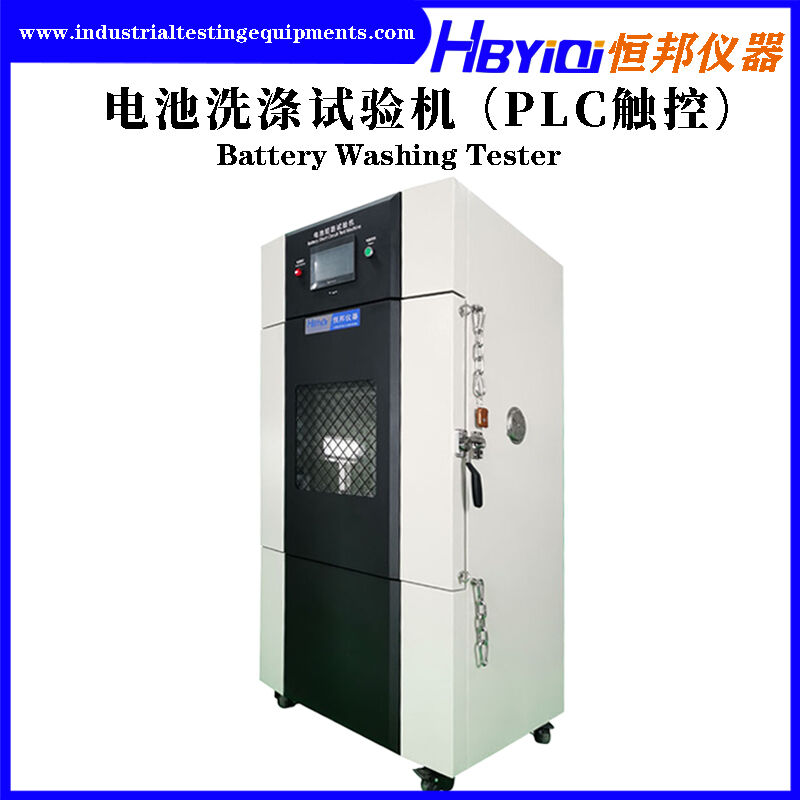

Battery Testing Equipment Smart Battery Washing & Soaking Tester PLC
Brand: HBYIQI
Equipment Name: Battery Wasing&Soaking Tester PLC&Explosion-proof
Appliance: The battery washing tester uses circulating water or other appropriate liquid to wash the battery through a nozzle or immersion method. The washing system can control the temperature, flow rate and washing time of the liquid to simulate the soaking of the battery under different environmental conditions.
Appling Objects:
1. Lithium-ion battery packs for handheld electronic products;
2. Lithium-ion battery packs for portable electronic products that may be carried or used in a pocket;
3. Other portable electronic products with a battery pack that can be carried in a pocket;
4. The installation of non-user replacement battery/battery pack of hand-held electronic products washing test.
Technical Parameter:
|
Model |
HB-DC10-B |
|
Control mode |
PLC touch + Remote Control |
|
Rotating drive |
Servo motor |
|
Solution temperature range |
From normal temperature to 80℃ (adjustable), and the common temperature is 45±2℃ |
|
Washing solution |
Solution with PH of 11.0±0.1 (NaOH solution with mass fraction of 0.004% can be used) (equipped by user) |
|
Turntable diameter |
Ø500±10mm |
|
Barrel diameter |
Ø650mm |
|
Barrel depth |
600mm |
|
Rotatry speed |
10-850r/min adjustable
|
| Test time | 0-9999H/M/S adjustable |
|
Chamber Structure |
|
|
Structure |
Intergrated |
|
Outer box size |
W1200mm*D1150mm*H1880mm |
|
Inner box materials |
304#stainless steel(thickness1.0mm) |
|
Outside box materials |
Cold rolled plate paint (thickness 1.0mm, total thickness of 100m with inner box) |
|
Visible window |
300x300mm (Thickness 20mm tempered explosion-proof glass) plus protective steel mesh |
|
Input Requirement |
|
|
Power supply |
AC 220V 50HZ or customization |
|
Power |
6KW |
|
Optional Item(Extra charge) |
|
|
Addable item |
Video monitoring system |
| Test Step | |
|
a).Solution: Prepare a solution with a PH value of 11.0±0.1 (NaOH solution with a mass fraction of 0.004% can be used) and heat the solution to 45°C ±2°C; b).Soaking: The test sample is fixed on the rotating device (as below picture), and then the sample is placed in the solution (the center of the battery is 300mm±10mm from the liquid level) for 0.5h, and the temperature of the solution is kept at 45 ℃±2 ℃ during the test; c).Stirring: the sample is fixed on the rotating device and rotated in the solution for 0.5h at the speed of 60r/min; d).Dehydration: Remove the solution and rotate for 10min at 800r/min; e).Drying: Place the sample in a high temperature box and heat it for 0.5h at a heating temperature of 45 ℃±2 ℃; f).If the sample can continue to charge and discharge, the test shall be completed after one cycle for discharge and charging cycle according to the battery spec mentioned method; while if the sample can no longer charge and discharge, the test should be terminated, and the sample should not ignite or explode. |
|
|
Washing diagram
|
|
Safety protection design
FAQ
Q1: What is your warranty?
One year product warranty. Free components will be provided if any performance failure occurs within 12 months caused by non-human damage.
Q2: What about the quality?
Each machine must be carried out 100% quality examination and test when shipping and delivery goods. All of our machines are strictly according to CE & ISO standards.
Q3: How to get quotation?
Leave your message and tell us your detail requirement, like test standard, test object, machine size, target price, etc...
We provide 24-hour service online, and provide the quotation and solutions for you within 3 days.
