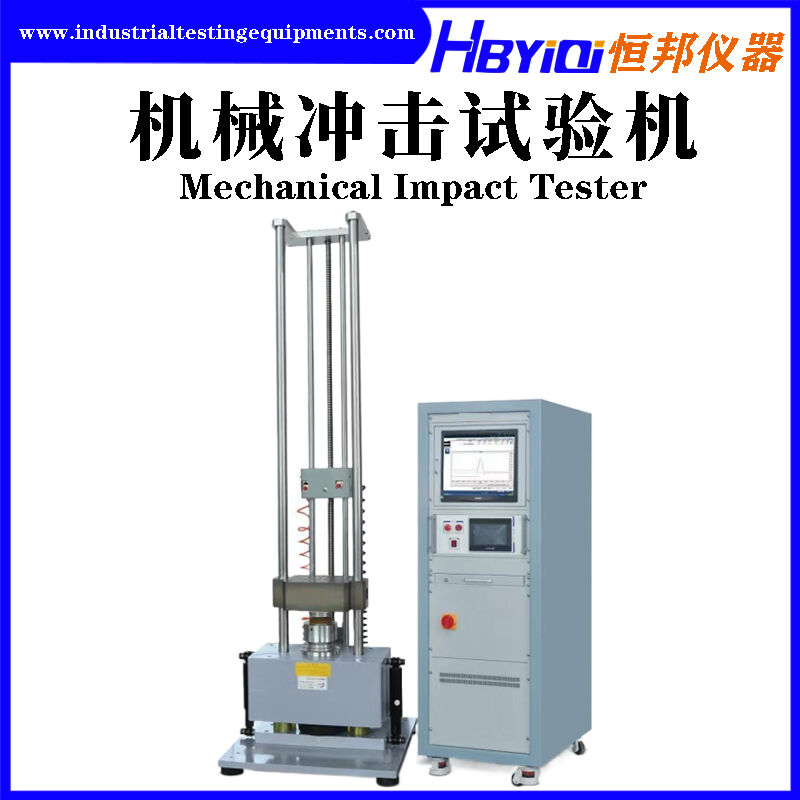

Lithium Battery Lithium Cell Mechanical Impact Tester UL1642 UN38.3 Precise Control
Lithium Battery Lithium Cell Mechanical Impact Tester UL1642 UN38.3 Precise Control
  • Lithium Battery Lithium Cell Mechanical Impact Tester UL1642 UN38.3 Precise Control
  • Lithium Battery Lithium Cell Mechanical Impact Tester UL1642 UN38.3 Precise Control
  • Lithium Battery Lithium Cell Mechanical Impact Tester UL1642 UN38.3 Precise Control
  • Lithium Battery Lithium Cell Mechanical Impact Tester UL1642 UN38.3 Precise Control

Lithium Battery Lithium Cell Mechanical Impact Tester UL1642 UN38.3 Precise Control

Product Details:
Place of Origin: China
Brand Name: HBYIQI
Certification: CE, ISO-9001
Model Number: HBHSKT10
Detail Information
Place of Origin:
China
Brand Name:
HBYIQI
Certification:
CE, ISO-9001
Model Number:
HBHSKT10
Model:
HBHSKT10
Working Table:
200mm*250mm
Peak Acceleration:
20-1500G
Impact Waveform:
Half-sine
Highlight:

High Light

Highlight:

Lithium Cell Mechanical Impact Tester

,

Lithium Battery Mechanical Impact Tester

Trading Information
Minimum Order Quantity:
1 set
Price:
Negotiation
Packaging Details:
International Standard Package
Delivery Time:
15 days
Payment Terms:
T/T
Product Description

Battery Testing Equipment Battery Mechanical Impact Tester


Brand: HBYIQI


Equipment Name: Battery Impact Tester


Standard basis: UL1642, UN38.3, IEC62100-2012, GB 31241-2022


Application: This battery tester simulates the impact influence to the battery pack or the cell that may occur during transportation.


Technical Parameter

Model HBHSKT10
Working platform 200mm*250mm
Maximum load 10 kg
Peak acceleration 20-1500G
Pulse duration 0.5-18ms
Maximum drop height 1500mm
Equipment size L660*W700*H2380mm
Equipment weight 525Kg
Measurement System
Input channels 2
Sampling frequency 192KHz
Input Voltage, charge
Coupling mode AC, DC, ICP
Pulse duration 50-0.1ms
Voltage range from -10V to +10V
Impact waveform Half-sine
Operating system Microsoft Windows7/10
Communication interface USB2.0

Others
Power supply AC220V±10％ 50Hz,1KVA
Compressed air 0.5-0.8Mpa
Temperature RT~40℃
Humidity 25°C <85RH %


Test Procedure
The test cells and battery packs are secured to the test device with rigid supports supporting all mounting surfaces of each test battery pack.
Each cell and battery pack is subjected to a half sine wave with a maximum acceleration of 150gn and a pulse duration of 6ms.
Each cell or battery pack is subjected to three shocks in the positive direction of the three perpendicular cell or battery pack mounting directions, followed by three shocks in the opposite direction, for a total of 18 shocks.
However, large cells and large battery packs are subjected to half sine waves with a maximum acceleration of 50gn and a pulse duration of 11ms. Each cell or battery pack is subjected to three shocks in the positive direction of the three perpendicular battery mounting directions, followed by three shocks in the opposite direction, for a total of 18 shocks.

Lithium Battery Lithium Cell Mechanical Impact Tester UL1642 UN38.3 Precise Control 0
Lithium Battery Lithium Cell Mechanical Impact Tester UL1642 UN38.3 Precise Control 1
Lithium Battery Lithium Cell Mechanical Impact Tester UL1642 UN38.3 Precise Control 2

Purchasing and consulting

We designate the experienced engineer and a foreign trade salesperson to answer your every question by multi-way of communication. We put a high value on your every requirement and will be honest and trustworthy, convenient and efficient mode to provide solutions and the most suitable equipment for you.

Service and maintenance

Our equipment maintenance experts are able to provide regular maintenance, repair and calibration of equipment systems to ensure that the system is always working at its best and strive to nip faults in the bud, thereby reducing maintenance costs and significantly extending the service life of measurement systems.

Upgrading and rebuilding

We will upgrade and rebuild the control system, software system and even the transmission system to make your equipment system under the best status, so that the technical advancement of the equipment has been greatly improved.

Installation and training

Before installation, please read the instruction manual; This manual introduces the detailed instruction of how to use the machine and all software functions. We also support training video to better solve your problems on time.
