| Place of Origin: | China |
| Brand Name: | HBYIQI |
| Certification: | ISO-9001 |
| Model Number: | HB-5V3A |

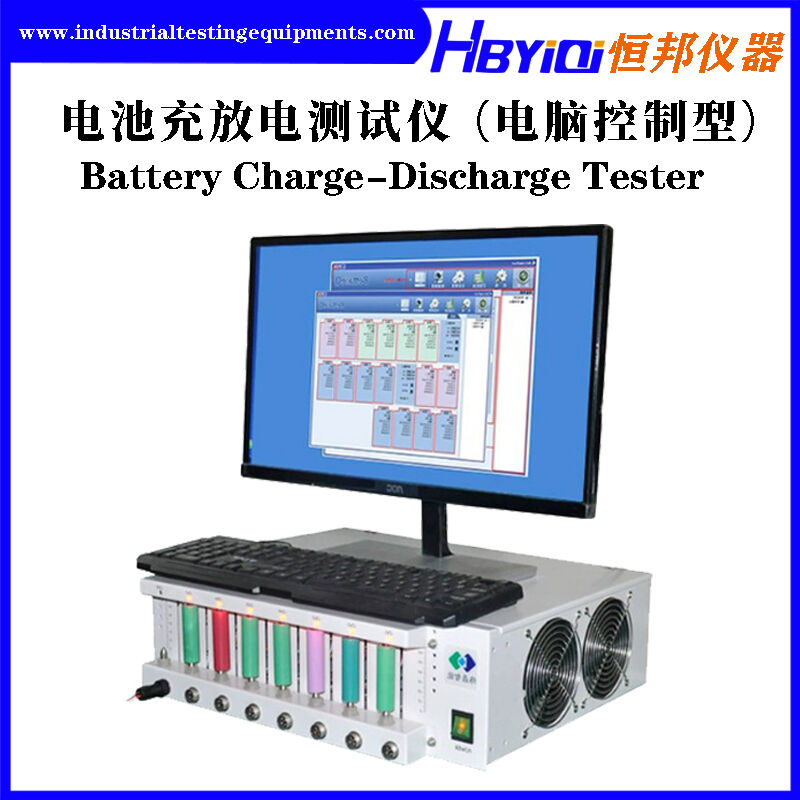

Battery Charging And Discharging Testing Equipment with Computer Control
Brand: HBYIQI
Equipment Name: Battery Charging and Discharging Tester
Model: HB-5V3A
Standard basis: IEC62133, UL1642, IEC62281, GB31241
Application: This is a high-precision and high-performance battery tester, set parameters in the computer software for various batteries' charging and discharging, such as 18650 cylindrical batteries, Li-polymer batteries; It can be used to test battery capacity/voltage/current and cycle test. And it is used by double constant current and constant voltage closed-loop with stable performance and single channel control. The Ethernet connection with the computer is convenient and flexible, and more devices can be added at any time through the switch.
Technical Parameter:
| Model | HB-5V3A | HB-5V6A | HB-5V10A | HB-10V5A | HB-10V10A |
| Voltage Range | 0.010-5.000V | 0.010-5.000V | 0.010-5.000V | 0.020-10.000V | 0.020-10.000V |
| Voltage Accuracy | 士0.1% | 士0.1% | ±0.1% | ±0.1% | 士0.1% |
| Current Range | 0.010-3.000A | 0.010-5.000A | 0.020-10.000A | 0.010-5.000A | 0.020-10.000A |
| Current Accuracy | ±0.1% | ±0.1% | ±0.1% | ±0.1% | ±0.1% |
| Charge and Discharge Model |
Charging with Constant Current/Voltage/Power Charging; Charging with Constant Current& Voltage; Discharging with Constant Current/Power/Load |
||||
| Test Command Numbers | 399 orders, 65535cycles; Supporting 5 layers of nested loops | ||||
| Test Channels | 8 | 8 | 8 | 8 | 8 |
| Communication Mode | Ethernet 100Mbps | ||||
| Security | Hardware anti-reverse connection; Power failure data protection; Software set protection conditions | ||||
| Data Record | 1Time/Second | 1Time/Second | 1Time/Second | 1Time/Second | 1Time/Second |
| Full Scale Current Response Time | ≤10ms | ≤10ms | ≤10ms | ≤10ms | ≤10ms |
| Input Impedance | ≥1 Mohm | ≥1 Mohm | ≥1 Mohm | ≥1 Mohm | ≥1 Mohm |
Features:
Device Operating Environment Requirements
| Work Temperature | 0℃-40℃ |
| Storage Temperature | -10℃-50℃ |
| Work Relative Humidity | ≤70% RH No Condensation |
| Storage Relative Humidity | ≤80% RH No Condensation |
| Input Power | 950W |
| Input Voltage | AC220V±10%/50Hz; other power supply spec are optional |
| Fixture Type |
Customization |
