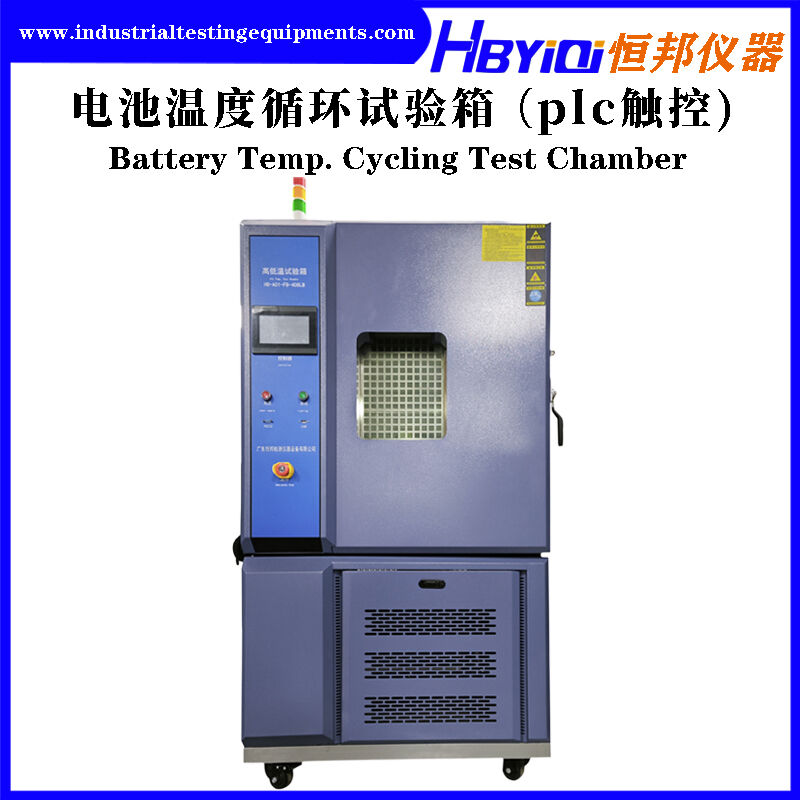

Touch Screen Battery Temperature Cycle Test Chamber 150L 225L 408L 800L 1000L
Touch Screen Battery Temperature Cycle Test Chamber 150L 225L 408L 800L 1000L
  • Touch Screen Battery Temperature Cycle Test Chamber 150L 225L 408L 800L 1000L
  • Touch Screen Battery Temperature Cycle Test Chamber 150L 225L 408L 800L 1000L
  • Touch Screen Battery Temperature Cycle Test Chamber 150L 225L 408L 800L 1000L
  • Touch Screen Battery Temperature Cycle Test Chamber 150L 225L 408L 800L 1000L
  • Touch Screen Battery Temperature Cycle Test Chamber 150L 225L 408L 800L 1000L

Touch Screen Battery Temperature Cycle Test Chamber 150L 225L 408L 800L 1000L

Product Details:
Place of Origin: China
Brand Name: HBYIQI
Certification: ISO-9001, CE
Model Number: HB-A02-150LC-FB
Detail Information
Place of Origin:
China
Brand Name:
HBYIQI
Certification:
ISO-9001, CE
Model Number:
HB-A02-150LC-FB
Usage:
Temperature Cycle Test Chamber
Related Industry:
Battery
Chamber Capacity:
150L, 225L, 408L,800L,1000L
Temperature Range:
-70℃ To +150℃ (adjustable)
Standard Basis:
IEC62133, UL1642, UN38.3, GB31241-2022
Highlight:

High Light

Highlight:

Battery Temperature Cycle Test Chamber

,

Touch Screen Battery Cycle Tester

Trading Information
Minimum Order Quantity:
1 set
Price:
Negotiation
Packaging Details:
International Standard Package
Delivery Time:
15 days
Payment Terms:
T/T
Product Description

Battery Testing Equipment Battery Temperature Cycle Test Chamber



Brand: HBYIQI



Equipment Name: Battery Temperature Cycle Tester



Standard basis: IEC62133, UL1642, UN38.3, GB31241-2022



Application: The battery temperature cycle test chamber simulates various temperature conditions that the battery may encounter in actual use to more comprehensively evaluate the performance and stability of the battery.



Technical Parameter

Model HB-A02-150LC-FB HB-A02-225LC-FB HB-A02-408LC-FB HB-A02-800LC-FB HB-A02-1000LC-FB
Capacity 150L 225L 408L 800L 1000L
Test space W500xD600xH500mm W500xD750xH600mm W600xD850xH800mm W1000xD1000xH800mm W1000xD1000xH1000mm
Cooling method Air-cooled Air-cooled Air-cooled Water-cooled Water-cooled
Total power 8kw 10kw 13kw 30kw 32kw

Temperature range

-70℃ to +150℃ (adjustable)

Temperature fluctuation

±0.5℃

Temperature departure

≤±2.0℃
Temperature uniformity ≤2.0℃
Heating rate 5.0℃/min from -40℃ to 85℃, the whole average nonlinear, no load
Cooling time 5.0℃/min from 85℃ to -40℃, the whole average nonlinear, no load
Heating and cooling overshoot ≤±2.0℃
Inner box material SUS#304 heat and cold resistant stainless steel with a thickness of 1.2mm is used for sealing and welding;
Outer box material With high-grade cold rolled sheet double-sided electrostatic resin high temperature spray
Control mode Touch screen programmable control PLC, with USB interface, RJ485 interface can be connected to the computer control
Compressor Full compact duplicate refrigeration French Taikang compressor or semi-enclosed Bitzer compressor
Safety device Explosion-proof pressure relief device, explosion-proof chain
Accessories options Smoke exhaust device, fire extinguishing device, etc



Safety protection design

  • Pressure release vent: Automatic explosion-proof pressure relief device

Touch Screen Battery Temperature Cycle Test Chamber 150L 225L 408L 800L 1000L 0



  • Explosion-proof chain: There are two explosion-proof chains on the left and right of the equipment door to prevent the door from being blown open at a critical time.
Touch Screen Battery Temperature Cycle Test Chamber 150L 225L 408L 800L 1000L 1

  • Insulation plate: Prevent battery short circuit
Touch Screen Battery Temperature Cycle Test Chamber 150L 225L 408L 800L 1000L 2

  • Double-layer explosion-proof tempered glass: Protection is more secure.
Touch Screen Battery Temperature Cycle Test Chamber 150L 225L 408L 800L 1000L 3

  • Explosion-proof mesh: Prevent battery explosion fragments from hitting the window.
Touch Screen Battery Temperature Cycle Test Chamber 150L 225L 408L 800L 1000L 4


Our service

If you face any questions during the purchasing and testing process, the prompt feedback within 48 hours and solutions within 3 working days are our duty.

1. Pre-service

24 Hours online service for your consult to help you to choose proper machines/equipments/testers and detail solutions/suggestions;

2. Mid-service

--Provide all products documents according to your requirement;

--Provide the best offer and discount for mass orders;

--Sign the business contract by both sides;

--Pay the deposit, promptly production and delivery in time;

3. After-service

--English version of installation and operation video/mannual;

--Free change for some parts;

--Remote control technical consult;

--Maintenance plan;

--1 year warranty service;
